Over the winter I had the opportunity to borrow one of the new 35mm f/1.4 Distagons from Zeiss UK. The company introduced the lens at Photokina in 2016, and it has gained an enviable reputation for image quality and value for money. Its direct Leica competitor is the f/1.4 Summilux which, at £4,200, is over twice as expensive as the Zeiss. Like the Summilux and despite the price difference, this is a sophisticated design with floating elements and two aspherical surfaces.
Although there has recently been a number of smaller manufacturers entering or re-entering the M-mount market — notably 7Artisans and Meyer Görlitz — the three musketeers are still Leica, Voigtländer, and Zeiss. Voigtländer lenses are the least expensive, with Zeiss occupying the middle ground. However, this bare statistic needs treating with care. All is not always what it seems.
Oddly, while Zeiss lenses are seen as the ultimate optics in Sony circles, Leica owners have a misplaced tendency to look down their noses at anything other than a Leica-branded product. It’s a price thing, almost entirely, and Voigtländer gets even less attention among the so-called connoisseurs.
I believe this attitude is wrong. The Zeiss 35mm f/1.4 Distagon ZM is an attractive, well made and competent lens. With its concave front element and typical “cool blue” Zeiss design, it has a distinctive appearance which in some ways I prefer over the rather bland presence of the latest Leica optics. Despite its similarity in construction and optical performance to Leica’s 35mm Summilux FLE, the Zeiss could not look more different.
Design
The Distagon follows established Zeiss aesthetics with blue engravings and a bright blue mount-location dot where, on both Leica and Voigtländer lenses, you find the traditional red dot. It is solidly built from metal, as you would expect, and is, to my mind at least, as well engineered as the Summilux.
As with the Summilux, the Distagon has the 70mm minimum focal distance in line with the limit imposed by the Leica rangefinder.
The Zeiss comprises ten lenses in seven groups with two aspherical elements. As with the Summilux, it has an aperture range of f/1.4 to f/16. A very unusual feature of the design is the concave front element which has the trademark Zeiss T anti-reflective coating.
Curiously, however, despite the similarities in optical build and image quality, the Distagon is a larger and heavier device than the Summilux. It is 19mm longer at 65mm, 8mm fatter at 63.4mm and 61g heavier at 381g. It also sports a 49mm filter thread compared with the 46mm of the Summilux. The Summilux has an advantage in size as it does in weight.
Unlike the familiar, squat Summilux, the longer Distagon looks and feels more like a 50mm Summilux. In fact, when I glanced down, I had to keep reminding myself that it was a thirty-five rather than a fifty.
Zeiss comments that the Distagon lenses were developed initially for SLR cameras requiring a long back focal distance for short focal lengths. This, they say, is because of the mirror box (the distance between the back lens element and the film plane must be considerably longer than the focal length):
“The Distagon lenses with their retrofocus design are also ideal for mirrorless system cameras thanks to their optimised ray path. Even with longer focal lengths, the high-performance Distagon optical design enables consistently good correction all the way to the corners of the image and very low field curvature.”
Zeiss did not supply a hood which, unlike Leica practice, is not included in the price. The simple metal hood with venting (to reduce the impact of viewfinder obstruction), costs an extraordinary £141, thus inflating the cost of the lens to £1,872 if we wish to compare it directly with the Summilux, which costs £4,200. In my view, this is a penny-pinching move. Leica has the right policy of including a hood with all their lenses (at a price). The round vented hood is similar in profile to third-party hoods which cost under £5. However, they screw into the filter thread, on top of a filter if one if fitted, and thus increase the length of the lens. If you buy the original hood from Zeiss, it attaches by a bayonet and looks neater.
As a contrast, the push-pull Leica hoods on the later 50 to 90mm lenses are a delight. On the 35mm Summilux, however, the supplied hood is the familiar square-profile metal device which screws into a dedicated thread on the outside of the body (rather than into the filter thread; it doesn’t add unnecessarily to the length of the lens). It is relatively compact and, more to the point comes free with the lens. I tend to keep it on the lens most of the time, whereas with the larger Distagon I would probably use the hood only when necessary.

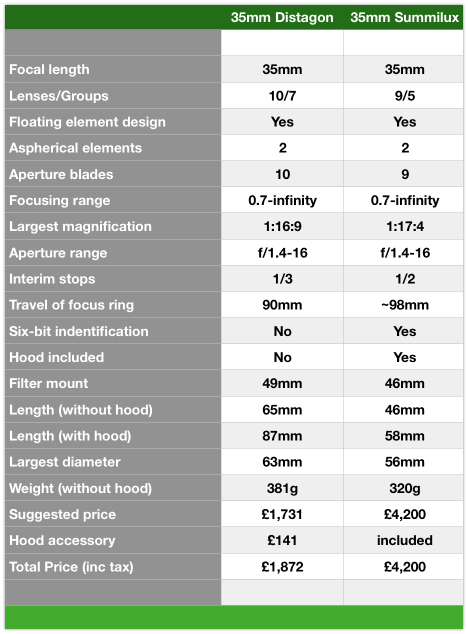

Since we are comparing directly with the 35mm Summilux-M ASPH, buyers should note that there is no six-bit coding on either Zeiss or Voigtländer optics. Third-party specialists can add it at a cost, although the only effect would be for the camera to recognise it as a Leica lens already in the list.
Leica cameras, therefore, cannot recognise the lens and automatically select a suitable lens profile. You can manually select an approximate profile from the list of Leica lenses (in this case the 35mm Summilux ASPH FLE profile is the obvious choice), but it isn’t a complete solution. The name of the chosen Leica lens appears in EXIF data, and this can become confusing over time. I usually add the correct lens name as a comment when batch processing. Some, I know, prefer not to choose a Leica lens profile and in this case, “unknown lens” appears in the data. Somehow, long term, this can be less confusing when reviewing old material.
Life with the 35mm Summilux on an M digital is that much easier in this specific respect. However, the big question is whether it is all of £2,500 easier.
Ergonomics
Some may well prefer the longer barrel from an ergonomic point of view. The focus ring is more comfortable to grip than that on the 35mm Summilux. The Leica lens has a smooth metal focus ring which can be slippery at times, thus making it essential the (excellent) focus tab. The ribbed ring on the Zeiss is more grippy and is slightly further away from the camera body, making the experience even more pleasant.
As I have already noted, this lens looks and feels more like a 50mm Summilux than a thirty-five. It handles more like the 50mm Summilux also, and I had to keep reminding myself that this is a wide-angle lens.
The focus ring action is very smooth, feeling even better than my Summilux, although I recognise this is a personal impression. A useful aspect is that it has a relatively broad ribbed surface which means it is much easier to grip than the smooth metal surface of the ring on the Summilux. It is fortunate that the natural grip of the Zeiss aperture ring is so much better because the domed focus tab on the Distagon is not to my taste. I much prefer the more substantial concave tabs featured on the Summilux and other modern Leica lenses. This is a small gripe and you do need that large focus tab on the Leica. At least with the Distagon, you have a choice.
The focus ring has a commendably tight 90-degree throw (Zeiss figure) slightly shorter than the ca.100-deg of the Summilux (my estimation) and offers a mildly faster transition between near and far.
The aperture ring is also precise and has a slightly more positive click to it than that on the Leica lens. Unlike the Summilux, which has half-stop detents, the Distagon has 1/3 stops, offering more precise control although, frankly, this is not a feature I would place high on my wishlist. It is very much a matter of preference, and it isn’t something that would sway me one way or the other in the buying decision. Others may disagree and see this as a valuable operational advantage of the Zeiss.
The Distagon design has the benefit of being entirely internally focused. The front of the lens does not extend at near distances, unlike the Summilux which grows in length by 7mm, admittedly a small amount, as the focus moves to 70mm.
The lens (even without the hood) does slightly block the bottom corner of the viewfinder, but this is not a significant problem. After all, this is a big lens for a thirty-five.
Overall, even though the Distagon is considerably more substantial than the squat Summilux, it is a pleasure to handle. Sometimes, a lens can be too small, and this is indeed not a problem with the Distagon. It is a sensible choice for bigger-fingered photographers.
In use
The Distagon turned out to be a diligent and rewarding companion over the few days it was in my custody, and we bonded immediately. Unfortunately, these were wet and cold days, and I would have liked to spend more time with the lens to grab more shots. As a result of the weather, I spent more time indoors (the brewery, the museum, the antiques fair, in stores, as you will see later), using higher ISO settings than usual. It is a testimony to the excellent performance of the M10. I have no hesitation in using ISO 3200 as a matter of course, while even 6400 is capable of producing excellent images. It is only when pixel peeping that a trace of noise is evident.

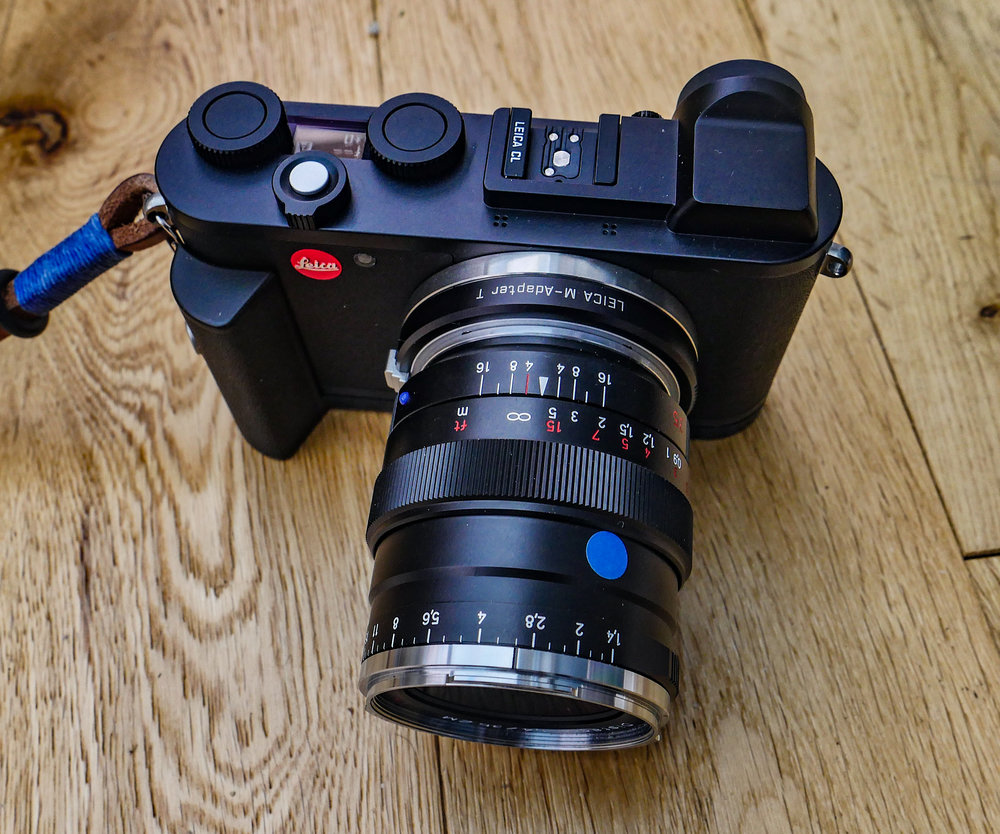

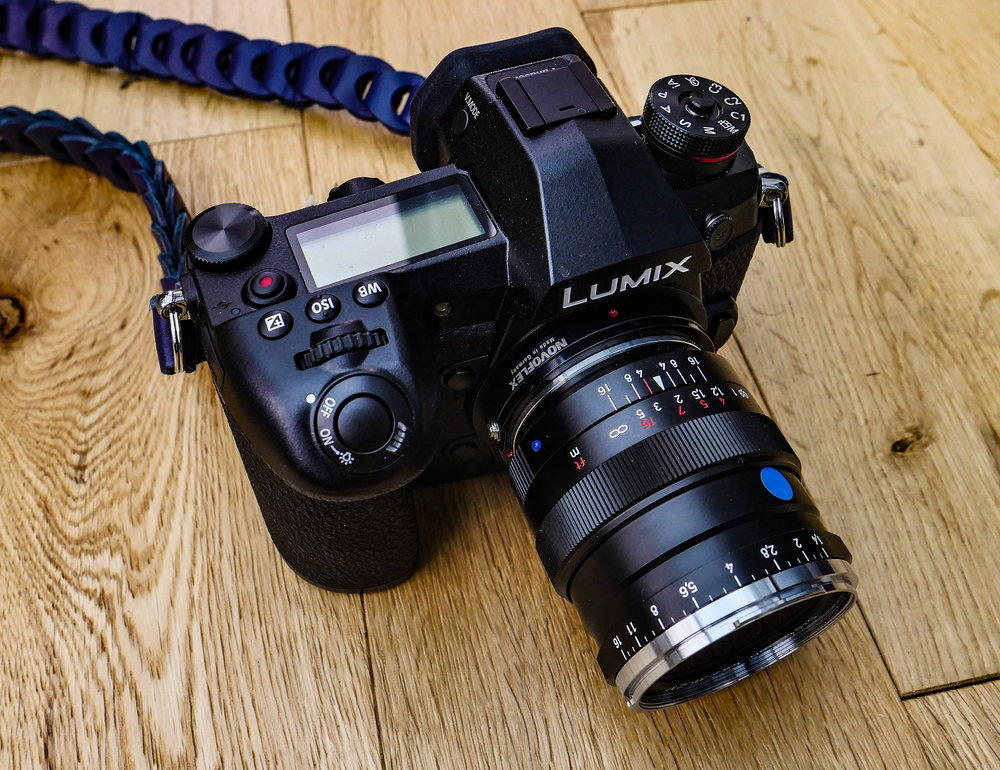

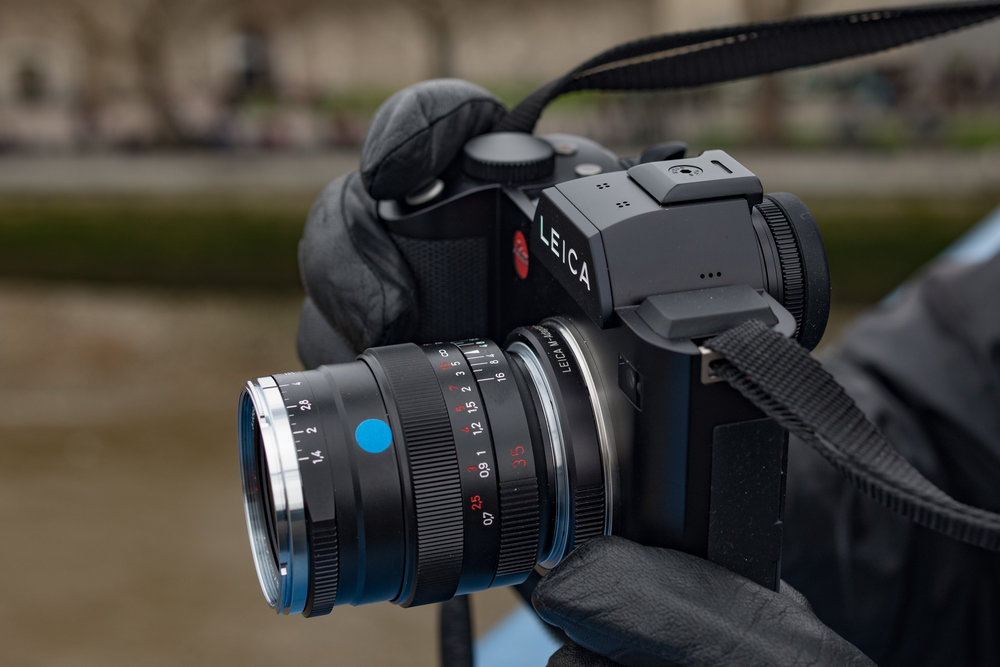

Nevertheless, I was able to use the lens with the M10, SL, CL and Panasonic G9 and it proved a capable performer on any platform. On the CL or another APS-C mirrorless camera such as a Fuji X, this lens is equivalent to a 52mm full-frame lens. On the micro four-thirds, it becomes 70mm where it serves as an excellent portrait lens.
As with any fast lens, rangefinder focus wide open needs care since the depth of field is extremely narrow. There is little room for error, although any 35mm semi-wide-angle optic is going to be less of a problem than, say, the 50mm Noctilux or 50mm Summilux. Perhaps it is an age-related eyesight problem, but I do prefer using an EVF when focusing this lens at its widest aperture. It is something I have found with the 50mm Summilux and the 50mm Noctilux; in both cases, I can more accurately focus via the WYSIWYG viewfinder. Younger eyes might not experience such problems with the rangefinder. However, the Distagon makes an excellent companion for the CL or the SL — and even the M10 when equipped with the Visoflex. In this, it is no different from Leica’s faster lenses.
In one respect, the light focus ring and the short focus throw conspire to make precision focus at wide apertures more tricky. I have recently had the opportunity to try the Voigtländer 40mm Nokton, a lens that has an unusually long focus-ring throw of ca.150 degrees. In general, I have always preferred the shorter throw of most Leica lenses. Oddly, however, this slower focus helps with precision at wide apertures and, in this sense and, as a result, the Voigtländer can be easier to handle despite its even faster f/1.2 aperture. That said, I do enjoy the speed of focus that a short throw brings when working at f/2 and over.
I could detect no focus shift on this lens although, as I have mentioned on several occasions, I am not a scientific lens tester and my time with the Distagon was limited. However, it is a modern design and is unlikely to be afflicted in the same way as the classic 50mm f/1.5 Zeiss Sonnar which we reviewed in 2016.
I have a very positive view of the Distagon and would be proud to have it in my lens bag. If I didn’t have a fast thirty-five, I believe I would choose it over the Summilux based on its abilities and transparent value for money. Moreover, in many ways, I do prefer its ergonomics.
Image quality
This is a review rather than a detailed test (many examples of which can be found elsewhere). My objective as always is to use the lens and consider its ergonomics, design and the resulting images. In the case of this lens, it’s position on the market in terms of cost is also a very significant aspect to consider.
The Distagon promises much, and I am glad to say that it delivers in full measure. It is sharp throughout the aperture range, in many ways similar to the Summilux. Edge sharpness is also excellent. Overall, and subjectively, I see very little difference between these two lenses in terms of output.
Colour rendering is particularly attractive, with impressively accurate skin tones. I detected a very sight amount of purple fringing in high-contrast situations at wider apertures but no more so than on similar fast lenses. That and a tiny amount of barrel distortion, almost undetectable, are easily corrected in Lightroom.
As a modern design, the lens exhibits good contrast, especially from f/2 onwards but is not as clinical in its rendering as, say, the Leica 50mm Apo-Summicron. For most users, this is a positive rather than a negative factor.
There is minimal vignetting evident at f/1.4, but it reduces progressively and is not noticeable beyond f/4. In this, it is not dissimilar to competing lenses from other manufacturers. As it happens, I’m partial to a bit of vignetting and, in any case, it can is easily in Lightroom. Again, the performance of this lens is very similar to that of the Summilux.
As you would expect, the lens is capable of achieving a relatively narrow depth of field at f/1.4 (for a 35mm lens), and the bokeh effect is both smooth and attractive. Overall, the image quality is superb. While I cannot be certain, without looking at statistics, that this lens is as good as the Summilux, I can say with conviction that I detect almost no difference in real-world situations.
Conclusion
The 35mm Distagon is a superbly solid and well-constructed lens which closely matches the 35mm Summilux in performance at a fraction of the price. Ergonomics are generally excellent, slightly let down by the weight of the lens in comparison with the Summilux. While I prefer the substantial focus tab of the Summilux, the Summilux focus ring is smooth and slippery. The other hand, the more extended profile and the ridged focus ring are more natural to handle.. As with all these things, it is a matter of personal preference, and I would recommend trying both the Leica and the Zeiss on your camera.
Ultimately, if the price were no object, the Summilux is the easier lens to live with, at least on a rangefinder M because of the auto recognition and population of the relevant EXIF data fields. The Distagon, pretty as it is, is less discreet. It is indeed longer and heavier. Some may prefer this and might consider it less fiddly than the Summilux.
However, the price is indeed a huge factor here. The Zeiss costs £1,731 but we really should factor in the hood, taking the cost to £1,872. The Leica, including hood, is a whopping £4,200. Cynics will argue that at that price Leica can well afford to include the hood, the superb zipped leather case and the much more substantial and attractive packaging. Indeed, buyers used to the Leica’s largesse might well commit to the Zeiss without realising that there is no hood or fancy leather case in the box. Moreover, then to be asked for an additional £141 for a simple vented hood (which looks remarkably similar to a £5 universal design from eBay) is rather insulting.
However, for £1,872 you have a lens that performs as well, if not better in some respects than the Leica. Don’t forget, though, that the current Leica Summilux FLE lens has been around since 2010 and used examples are easy to find. The Zeiss is a rarer animal on the used market whereas you can find an excellent second-hand Summilux but it will still be perhaps £1,000 more expensive than the new Zeiss. However, the used Summilux will have lost a big chunk of its initial depreciation, thus ensuring that the whole-life cost of the Zeiss could be higher.
Nevertheless, if you are in the market for a fast 35mm lens, the Zeiss Distagon is more than tempting. It’s a good looker and an outstanding performer, and it offers impressive value for money. Put it on your list for consideration.
At the brewery with the M10
Full frame on the left, crop on the right. Click on images to enlarge
Out and about with the Leica M10
Full frame on the left, crop on the right. Click on images to enlarge
At the Museum with the Leica M10
Full frame on the left, crop on the right. Click on images to enlarge
Comparisons from the CL
Full frame on the left, crop on the right. Click on images to enlarge
- Subscribe to Macfilos for free updates on articles as they are published
- Want to comment on this article but having problems?
Our thanks to Zeiss UK and Adam Kidman for the loan of the Distagon
