The Leica alternative: Leica CL with Leica’s 40/2 and 90/4

The M Files, part 7 of 9

26

With the sixth and almost last camera covered in this article, we now get as close to the Leica M world as we can get in The M Files. This episode is about the Leica CL – the camera which Leica themselves wanted to offer as a less expensive option for people who wouldn’t buy an M. In some respects it is simplified, but in others, it is much more advanced than anything Leica had in its range before. I tested it with the Leica Summicron-C 40/2 and the Leica Elmar-C 90/4.

This is why the CL was manufactured by Minolta in Japan. In some respects, it is simplified, but in others, it is much more advanced than anything Leica had in their range before. I tested it with the Leica Summicron-C 40/2 and the Leica Elmar-C 90/4.

A Leica, certainly. But not one of the M series. The CL from 1973 offered M mount and a considerably lighter and smaller body

So much has already been written about the Leica CL that I can be very brief here. At the end of the 60s and beginning of the 70s, Leitz came under massive pressure caused both by lack of innovation and by the new competition from Japan. The far-eastern rivals no longer offered what were more or less cheap Leica copies, but rather serious SLR cameras that were marketed as technologically superior. And this whiff of superiority did have some justification. The Leica M4, introduced in 1967, was of excellent quality, but by the time it was introduced to the market it was already outdated. What’s more, it was extremely expensive.

The “Compact-Leica” and its short life

So Leitz developed a new camera together with Minolta, the CL. The letters stand for “Compact-Leica”, as it was literally expressed in the maker’s manual. The CL was to be considerably cheaper, but at the same time it was to retain some connection to the M system.

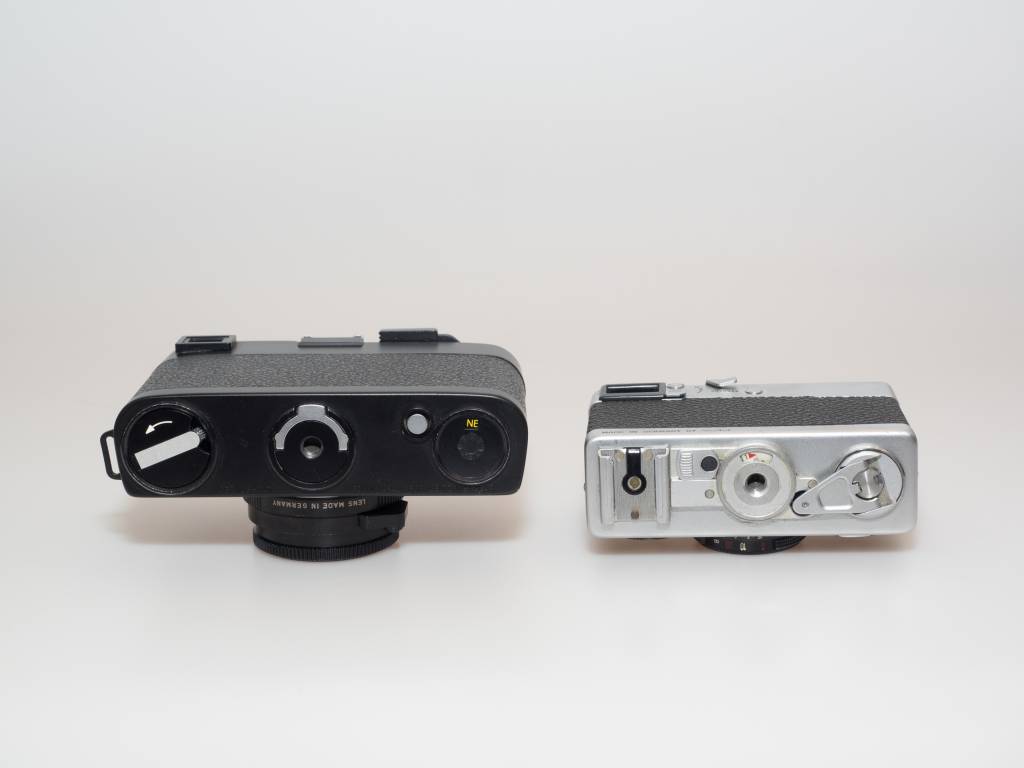

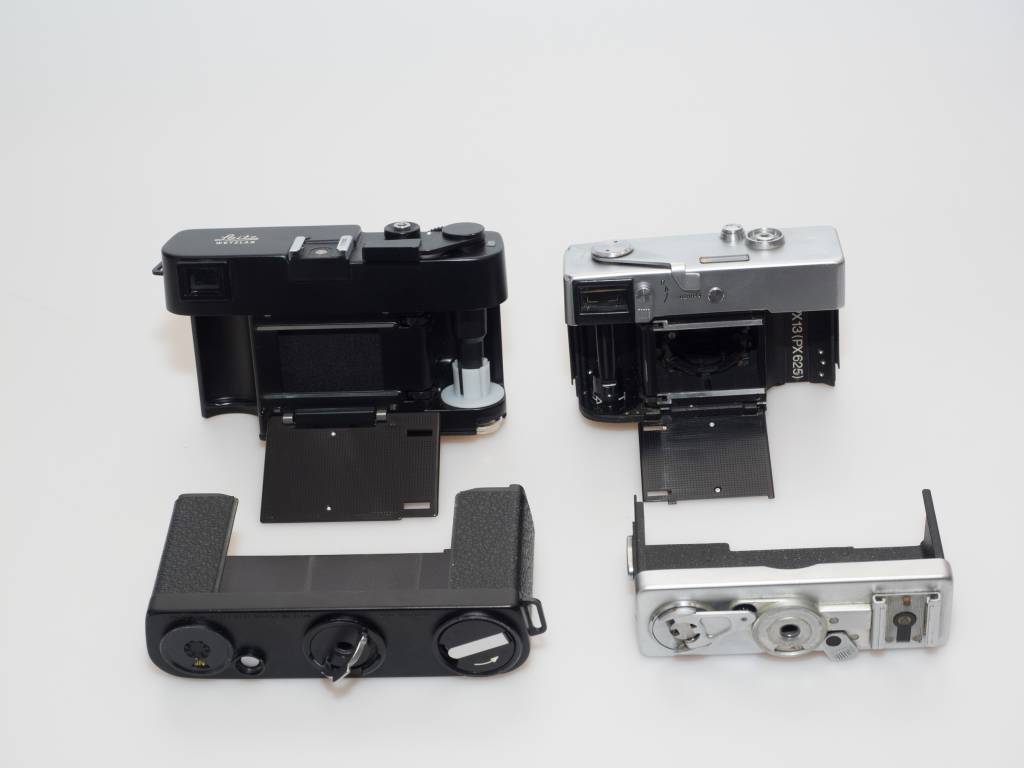

In the same market segment: When the Leica CL appeared, the Rollei 35 had already been available for seven years. The standards for a high-quality miniature 35mm camera were set. The CL added TTL exposure metering, interchangeable lenses and rangefinder focusing

The result was a handy (and handsome) camera with a built-in light meter, easier usability especially when loading a film, a nice bright viewfinder and two specially designed lenses with M-mount. The CL was introduced in 1973, but it was taken off the market again in 1976. Allegedly, the still impressive number of 65,000 cameras was sold.  And, to this day, there is the rumour that the CL was actually discontinued because of cannibalisation.

A retro design that looks cool in 2020

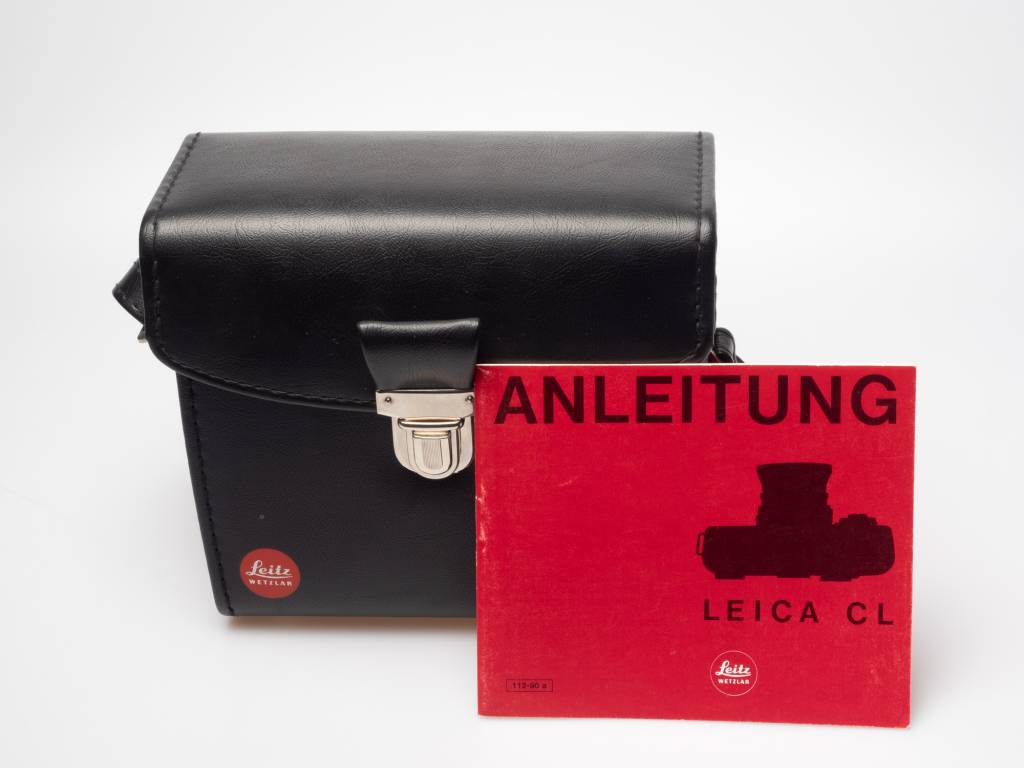

The copy I used for this review came as a full kit, in a 1970s leatherette bag that would fit any hipster very nicely with its plain form. Inside are compartments for the additional 90 millimetre telephoto lens, for filters, and the camera with the attached 40.

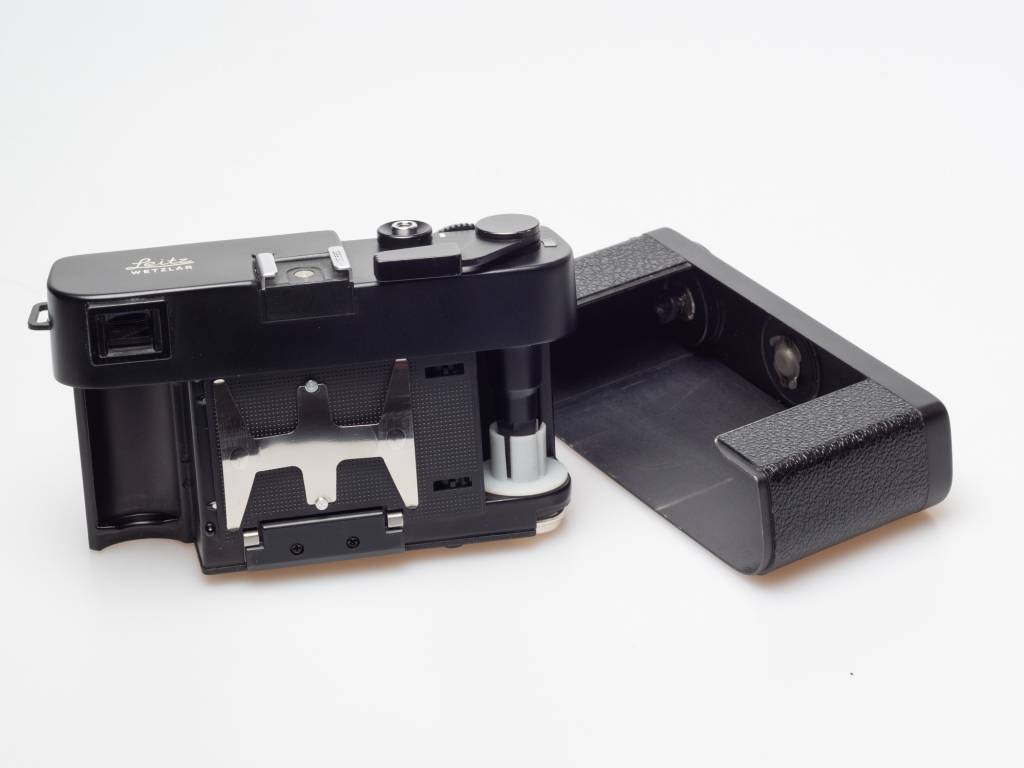

You store and transport the CL in an upright position—quite unusual. Also, the lugs for the carrying strap are on the short side. This is so uncommon that buyers of the M5 with the same arrangement initially were quite unhappy and Leica decided to add a third lug to let customers chose in which way they want to carry their camera.

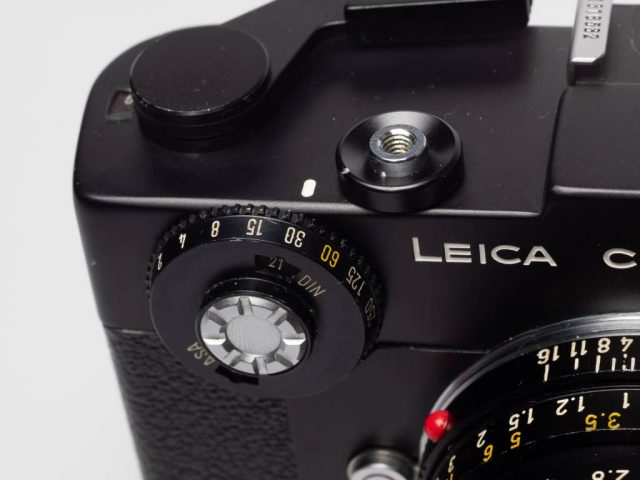

Set your exposure time manually on this all-mechanical camera – the dial at the front of the CL is unfamiliar to all who normally work with M cameras. But once you got used to it, you will really like it

Look through the viewfinder, and you will be surprised

When you take the Leica CL in your hands, it feels surprisingly light—and it is. At first glance, the technique of film loading appears somewhat fragile. To do this, you entirely remove the rear cover and lock it back in place afterwards. This works surprisingly well, and just as pleasing is the view through the viewfinder. At the top edge, a rather nice mechanism shows the selected exposure time (something the M6 or today’s MP still do not offer).

You set the exposure time using the front dial that also serves for ISO setting. On the righthand side of the viewfinder is a needle that indicates over- or under-exposure. But beware, it is not as intuitive as you would expect: The needle below the middle actually means overexposed. And it is said that the meter reading is only correct when the camera is held in horizontal direction. Well, I tried out the metering in portrait mode, and even then, exposure was correct on the basis of 18% grey.

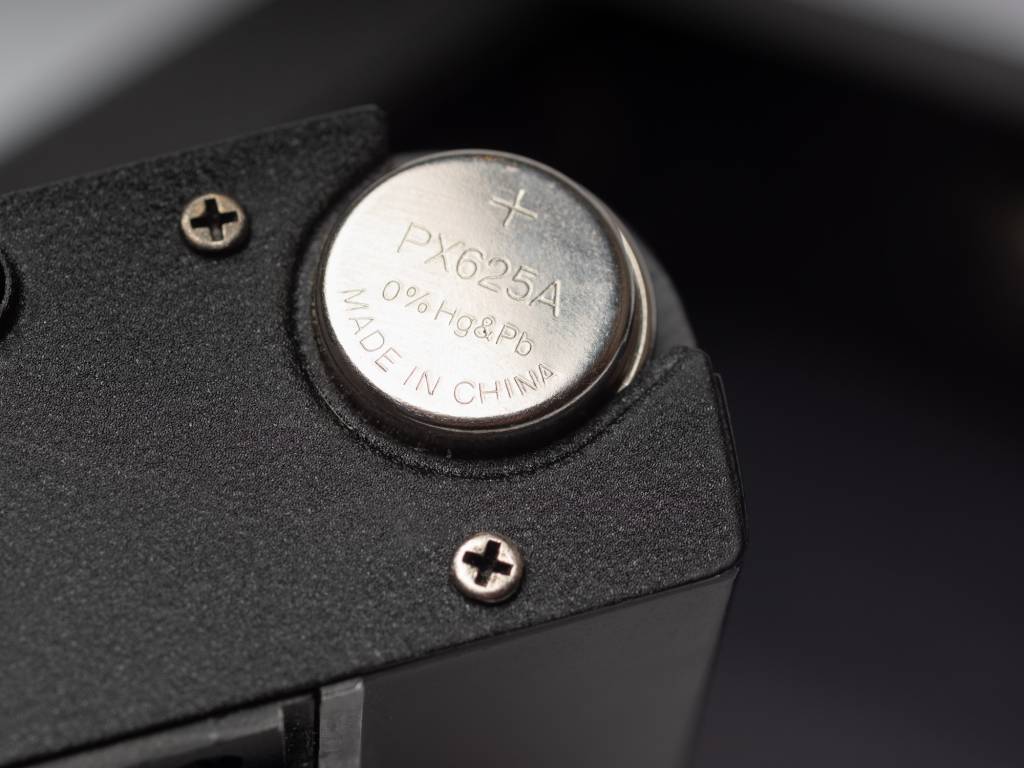

The exposure meter needs a battery – normally a 1.35 Volt mercury cell which is not available anymore. I had my CL converted to 1.5 Volt with the result that PX625A batteries can be used

The mercury battery issue and how it can be cured

Much has been written about the, well, very special mechanics of exposure metering with its mechanical swivel arm. It was not the perfect solution and, on my CL it was misaligned. I had a CLA done in a professional workshop and, since then, everything works fine. On this occasion the light meter was also changed to 1.5 Volt. Unfortunately, the 1.35 volt mercury batteries that are normally required for the CL have not been available for years (which also affects other great cameras such as the Leica M5, the Olympus OM-1 or the Minolta SRT). Since the conversion I can now use easily available alkaline batteries of type V625U or PX625A rated at 1.5 Volt.

Here, you see the swivel arm (sometimes called a “lollipop”) with the CdS cell for exposure measuring. This was an awkward construction even back in the 70s – just look how Olympus solved the problem on the OM-1 which was developed at the same time

Do not expect wonders when it comes to focusing accuracy

Focusing with the CL is easy for those who are experienced with the rangefinder principle. The viewfinder is large and, for its age, quite immune to light from oblique angles. However, the measuring base is only 31 millimetres long (remember: The CL was expressly intended to be a small Leica!) With the magnification factor of 0.6, the effective base length is only 18.6 millimetres. This is less than any of the cameras reviewed so far, including the Bessa R4M with its unique wide-angle rangefinder.

The longer the focal length and the wider the aperture, the more difficult it is to focus. This is characteristic of all rangefinder cameras. I did manage to bring the CL to its limits with very fast/long lenses. But I was able to get very decent focus with the f/2 aperture of the 40 and the f/4 aperture of the 90. In both cases, there was enough depth of field to compensate for the eventual inaccuracy.

An issue with the (vertically travelling) shutter of the 1970s Leica CL: The upper part of the film is not exposed. Obviously, you will notice the problem only weeks afterwards when you get your scans from the lab. In my copy, the problem occurred in varying degrees always when shooting the first film. In the middle of the second film, a sudden healing took place, and everything was good

With an old camera, all kind of issues may occur

As I wrote earlier, you start in a kind of adventure with any of the cameras which are featured in The M Files. I got some of them on loan, others I was able to acquire from other enthusiasts whom I told about my project and who were happy to make a contribution in the form of a special price.

Of the CL I was told that it might have shutter issues. And so it was. In some pictures, the upper part of the image is not exposed at all. A pity of course and a lesson for everybody to test any camera (old or new, recently serviced or long-time neglected, very familiar or unknown) before using it for an important assignment.

I added some of the more or less ruined pictures to this text because I have a strong feeling that this is the stuff that really belongs to a project like The M Files (and because some of them are otherwise nice pictures).

The 40 Summicron—an underrated lens

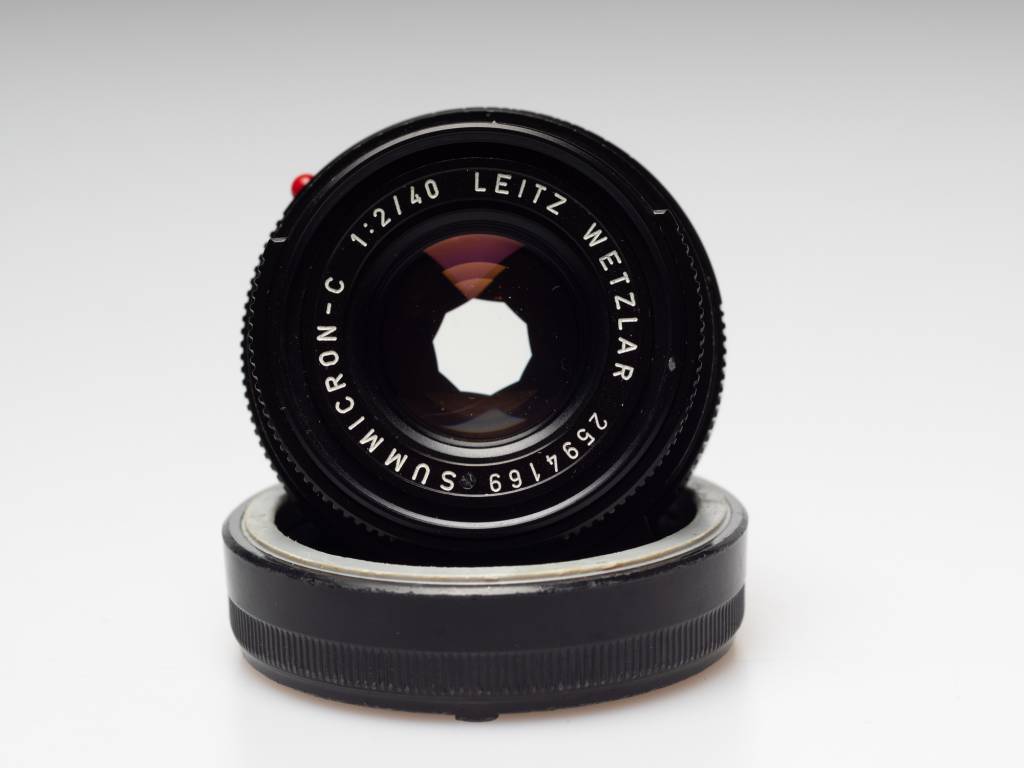

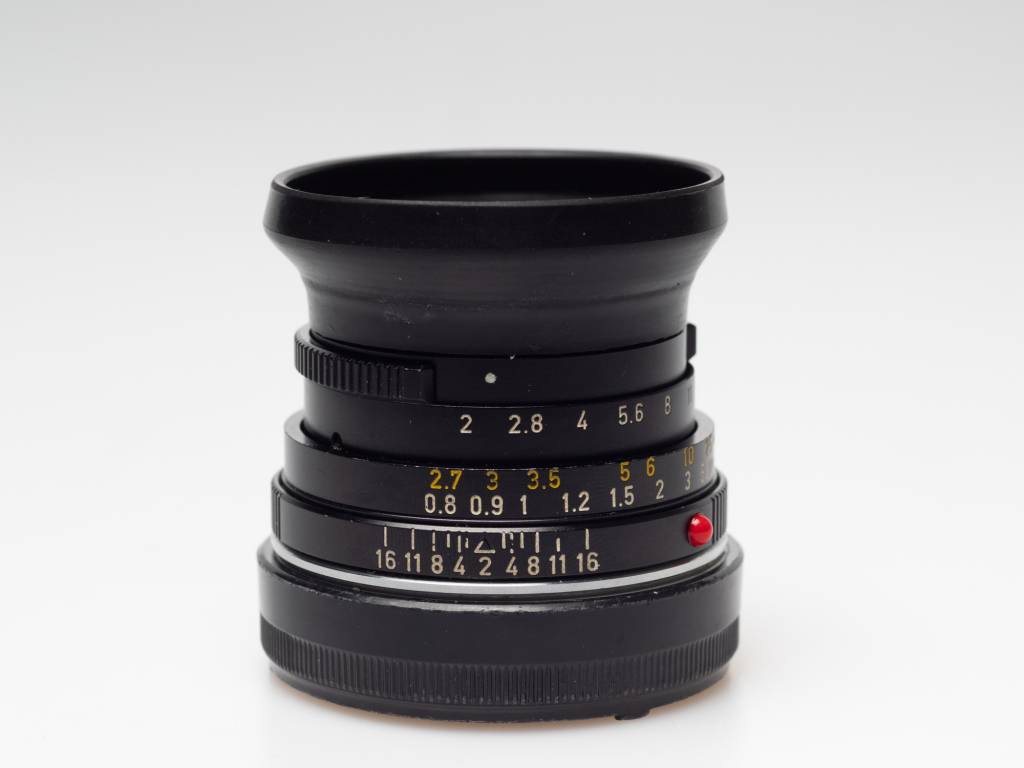

So small and yet a Summicron: Leica’s 40/2 for the CL camera. Other than the body, the lens was made in Germany

I have mainly used the Summicron-C 40/2 so far. If you attach it to the CL, you see 40 and 50 millimetre frame lines, both clearly designated with “40” and “50”, which is a nice feature. The lens is super tiny and featherlight (148 grams, I always refer to lens plus both caps plus hood) especially when you look at the respectable f/2 maximum aperture.

The lens performed favourably during my testing. It is a tad soft when fully open and at close distance (0.8 metres), but very sharp and crisp from f/4 onwards. I tested it also during an early winter day in the Swiss Alps, with a slightly overcast sky and snow. Under such circumstances, you have the light coming from everywhere. When the sun came out, I forced the lens into uncomfortable angles to the light. It worked better than expected, with its early 70s single-coating (see also the next episode which covers the Minolta CLE with its M-Rokkor 40/2).

You need this hood for the Summicron-C because it is the only reasonable way to attach filters. And these you will definitely need when shooting on black and white film. Leitz C-lenses have a rare M39x0.75 thread and work with 5.5 series filters

Hood, filter and a very special screw-in thread

I always used the original hood – be sure to get one if you plan to buy the lens. It screws into the lens thread, which has the exotic dimensions of 39×0.75. That means the diameter would be fine for a standards 39-millimetre filter or screw-in-hood. But the pitch is different. If you force a standard E39 filter on it, you are likely to ruin the thread.


The Leica CL uses Series 5.5 filters. They are hard to find nowadays and, to make things worse, you need the original rubber hood to attach them

You put the filter, which has no thread at all, into the hood that connects with the lens via a non-standard screw-in thread, thus holding the filter in place

Using the original hood is also the only way of working with filters, for example in black-and-white photography. You need series 5.5 filters. B+W have thrown them out of their programme even earlier than the series VII and VIII filters (necessary for the M Summiluxes 24 and 21). The German manufacturer Heliopan still made series 5.5 filters in 2020. My advice is – if you need one, do not wait. This source could also dry up soon.

Everything is delicate on this super-small Summicron

You better have slender fingers for this tiny lens

Back to the Summicron-C: You can often read that this lens may not focus well on M cameras due to a certain constructive design. This may or may not be true. In a brief test, my copy worked excellent on an M10, even wide open and at short distance, with the optical viewfinder. And the frequently criticised bokeh? Not that bad, I found. So, if there is a drawback, then it is handling from my point of view. This lens is so tiny that you have to get used to finding the aperture ring and the small focusing lever. With slender fingers, you have a clear advantage. Hmm, wasn’t the CL also marketed as a “ladies’ camera” by Leitz?

Close-up sharpness is not so easy to achieve with the C-Summicon on a normal M camera. But it’s no problem if you can use live view, such as here with the SL. Also note the bokeh

The 40’s limited usability on other rangefinder cameras

If you want to use this nice Summicron 40 on any M mount body without 40 millimetre frame lines (that is, on any Leica M), you will see the 50 millimetre frame lines instead of the better-suited 35 mm lines. This is a pity because it is quite easy to imagine a slightly narrower frame, while I found it really difficult to figure out how much less than shown in the 50 millimetre frame might be in the picture.

No problem with live view or EVFs, but a big issue on analogue cameras especially if you shoot slide film which leaves no room for cropping. So, you have to operate the frame selection lever (if present on your camera) manually or fix it with some paper squeezed in (you will find all the details in various online reviews). The Rollei 40/2.8 I wrote about earlier suffers from the same problem by the way. But there, you could solve it easily by using a different LTM to M mount adapter.

Photos shot on film and 40/2

Early winter in North-Eastern Switzerland, just an hour from our home on the Bodensee. Summicron-C 40/2 on  Leica CL. Fujifilm C200
The Säntis, which also dominates the view to the south from the Bodensee. Summicron-C 40/2 on  Leica CL. Fujifilm C200
Mild early winter evening light. Note the flare resistance of the almost 50-year-old lens. Summicron-C 40/2 on  Leica CL. Fujifilm C200
On the shores of the Bodensee, white Christmas is a rare exception. But it was otherwise nice on December 24. Summicron-C 40/2 on  Leica CL. Fujifilm C200
Is there such a thing as a “classic” or “analogue” look? This picture supports my tendency to answer that question with yes. Summicron-C 40/2 on  Leica CL. Fujifilm C200
One last shot from the Appenzell area in Switzerland (which became almost inaccessible only days after this photo was taken). Stunning tiny Summicron. Summicron-C 40/2 on  Leica CL. Fujifilm C200

In the forests around Konstanz, you can find surprisingly wild places. Summicron-C 40/2 on  Leica CL. Fujifilm C200
Yes, old cameras are a risk, and if there is an issue you are like to be late in noticing. Otherwise a fine document of the Summicron-C’s abilities. Summicron-C 40/2 on  Leica CL. Fujifilm C200

Photos shot with a digital camera with CL and 40/2

With more post-processing, this picture could gain contrast. Or you use a more modern lens right away. Leica Summicron-C 40/2 on M10
Good, but not excellent sharpness when used at minimal focusing distance (0.8 metres). If you count in the tiny shape and the age of the Summicron-C, this is quite good. Leica Summicron-C 40/2 on M10
Wide perspectives. 40 is a really nice focal length, especially for a one-lens-kit. Leica Summicron-C 40/2 on SL
Flare control is good for a lens that received only a single coating when it was manufactured back in the early 70s. Leica Summicron-C 40/2 on SL
Stopped down, the tiny Summicron is wonderful for my taste. The summit is the Säntis (2502 m) in the Swiss Alps. The buildings on the top (cable car station and broadcast facilities) are clearly visible. Leica Summicron-C 40/2 on SL
Bokeh is always a matter of taste. In the background, there are more troll houses built by children in this forest. Leica Summicron-C 40/2 on SL
Calmness – this is what the small Summicron-C conveys for me. Not only here, where a local had built a beautiful and unique Christmas Nativity scene above Lake Constance. Leica Summicron-C 40/2 on SL

A small tele that is better than you might expect

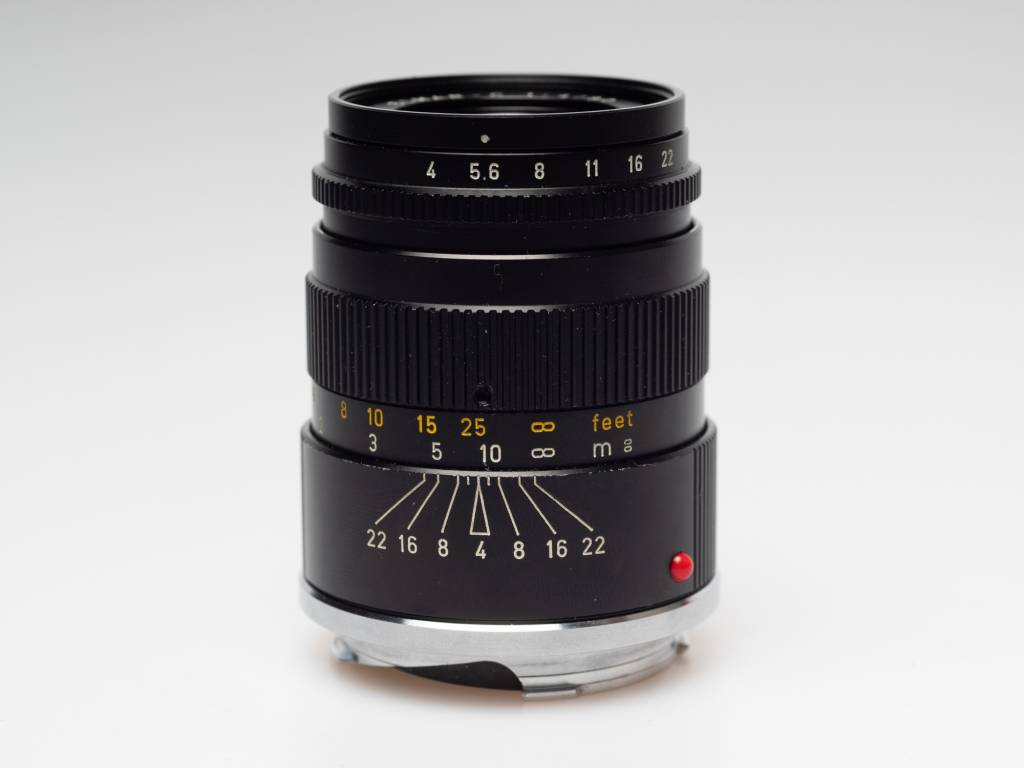

The other lens that was made for the CL: The Elmar-C 90/4, a very lightweight telephoto lens. With its moderate aperture, if forgives small errors in focusing accuracy (caused by user or cameras)

The Elmar-C 90/4 is easier to handle because it is compact, too, but not tiny. It is lightweight but solid. It has the same lens hood/filter issue with the strange M39x0.75 thread. This becomes even more prominent because, when shooting black and white, you want to use this lens with a yellow filter as a standard. Why that? It will considerably improve the somewhat limited contrast of the optic.

Otherwise, the Elmar-C is more than okay, even when shot more or less against the sun. It can be very inexpensive, and if you have developed some feeling for its strengths and weaknesses it will be good enough for many situations. The absence of brutal sharpness in the close range and wide open might even be helpful when shooting portraits (remember the brilliant marketing idea of the “portrait lens” – obsolete today because you can always take away sharpness in digital post-processing, but never really add it).

Nice render but hefty vignetting. Elmar-C on Leica SL, fully open

Dark corners when you use the Elmar-C on an SL body

Wide open, heavy vignetting occurred when I used the Elmar-C on the SL. I made sure it was not the lens hood (again: check that it is included and in good condition if you think about buying the lens). The effect is less prominent when you use the lens on an M10 (no correction profile activated), and it is almost absent when the lens is attached to a film camera and stopped down to f/5.6, so it might have something to do with the angles of light rays and the sensor (or its cover glass) construction.

There are so many other 90s…

All in all, the 270-gram Elmar-C lens was the least convincing part of the CL outfit for me. It has many of the weaknesses of the Summicron-C (filter thread, front cap, minor optical limitations) but unfortunately not all if its strengths (it boasts neither tiny size not exceptionally low weight). What both CL lenses share is affordability. If money matters, it is worthwhile to have some patience however. You could get a 90/2.8 (last version, Elmarit-M, or second last version, Tele-Elmarit) for a good price and have a far better lens in the end. If size and weight do matter, consider the Macro-Elmar 90/4. It weighs even less than the Elmar-C and is lightyears ahead optically.

Photos shot on film with CL and 90/4

I decided not to crop this image for the sake of authenticity despite the certain improvement. Nice rendering, even with sun shining in. Elmar-C 90/4 on Leica CL. Kodak Ultramax 400
Nothing to complain about when you work with the Elmar-C. Sharpness is a bit of a lottery wide open and on short distance. Elmar-C 90/4 on Leica CL. Kodak Ultramax 400
Just follow the road, it will take you to beautiful places. Elmar-C 90/4 on Leica CL (cropped to reduce the black upper margin issue caused by a shutter problem). Kodak Ultramax 400
If you have a subject that is well lit and has good contrast, focusing with the CL is remarkably easy, but only if your camera has as clean a rangefinder as the copy used by me. Elmar-C 90/4 on Leica CL (cropped to reduce the black upper margin issue caused by a shutter problem). Kodak Ultramax 400
This is more of touristic interest – you see the thick fog sitting in the Rhine valley (upper left): Down there, or on my home Bodensee, you really have to firmly believe that it is not so far into the sun. Elmar-C 90/4 on Leica CL (cropped to reduce the black upper margin issue caused by a shutter problem). Kodak Ultramax 400
After one and a half rolls, the shutter issue was suddenly cured. Unfortunately, we had almost reached the valley at that time. The Summit in the background is called Hoher Kasten, one of the top viewpoints in the Swiss Canton of Appenzell. Elmar-C 90/4 on Leica CL. Kodak Ultramax 400

Photos shot with a digital camera and 90/4

Good resolution even of fine detail, average contrast. You will finder better 90s for your Leica M but probably none cheaper than the Elmar-C. Leica Elmar-C 90/4 on SL
The other prominent summit in the lovely Appenzell region in eastern Switzerland is called Hoher Kasten (1793 m), a nice hike in summer but a serious undertaking in winter. Or you take the cable car. Leica Elmar-C 90/4 on SL
90 millimetres? You have to test such a lens with a portrait. Good sharpness wide open, pleasing bokeh… but not the 3D pop that some newer M lenses such as my much loved 75 Summarit have. Leica Elmar-C 90/4 on SL
Vignetting is an issue with the Elmar-C, even if stopped down a bit – but the effect is far less prominent on a digital M body or when you shoot on film. Leica Elmar-C 90/4 on SL
50 shades of white. On a solitary early winter hike in the Swiss mountains, the Elmar-C shows its strengths. Colour rendition is certainly one. Leica Elmar-C 90/4 on SL
Once more the Säntis in Switzerland, shot from North around noon. In backlit situations, the Elmar-C shows definitely less contrast than more modern lenses. Leica Elmar-C 90/4 on SL
Again, vignetting, but more than decent sharpness and contrast for this almost 50-year-old lens. Leica Elmar-C 90/4 on M10

Conclusion: The Leica that almost was

To sum up: The Leica CL is a wonderful camera and, although made in Japan by Minolta, a pretty real Leica. It has many of the classic Leica virtues. It is small and handy, easy to use (after gaining some basic proficiency) and of high manufacturing quality. It also has its limitations, especially when focusing with a wide aperture and/or longer focal lengths. But you can rely on the fact that the two dedicated C-lenses fit this camera very well in every respect.

It is also worth taking a look at the successor model to the Leica CL, the Minolta CLE. It even offers auto exposure and TTL flash control. For a long time, I saw no real chance to include this camera in The M Files because a good and flawlessly working CLE seems even harder to get than a good CL. But then… stay tuned and read the next episode!

In any case, the Leica CL is, despite its limitations (mainly in terms of usable lenses) perhaps the most affordable way to enter the world of M mount rangefinders with exchangeable lenses. If you take good care when buying it (pay very close attention to the wearing parts) and, if necessary, you are prepared to invest some money in a CLA, you will get a truly charming camera.

I work on a completely independent basis, but I wish to thank Lichtblick and Leica Store Konstanz for their support in providing some accessories used for this review. Both are very recommendable; they take phone or mail orders and offer shipping also outside the EU. However, if there still is one, please do not forget to support your local photo equipment dealer in these challenging times.
