The thing which struck me most about the M11 (..besides it being the fastest route to Cambridge from east of London..)[footnote]The M11 motorway, that is. In Britain, we have a motorway, freeway, Autobahn (call it what you will) for just about every M camera ever made, save for the -Ps and -Ds and suchlike[/footnote] is that its sensor and pixel count, as we all know, have been bumped up to sixty. But the viewfinder — the thing you use to focus an image onto those 60 mega dots — hasn’t been upgraded since 1954’s original M3 (another road, this one to Winchester).
No: correction; it’s actually been downgraded since ’54: the original Leica M3 finder shows a view at 90% of lifesize, but the M11 shows everything reduced down to 70% lifesize: further away, smaller, and less easy to focus.
Upgrade a ’54 car engine, make it more powerful, faster to accelerate; upgrade the tyres to radial instead of cross-ply; update the rest (smoother gearbox, springs, drive mechanism) but leave the BRAKES as they were, with old-style internal drum shoes (which notoriously ‘fade’ the harder they’re squeezed) and what have you got? Disaster, no less.
It drives fast, but it can’t stop fast.
I thought I’d check all this — the usefulness of the almost 70-year-old glass ‘M’ finder — when Mike (our Editor) and I went for a walk along the Thames the other week, with a Leica M11 and a few other cameras. We took some photos.

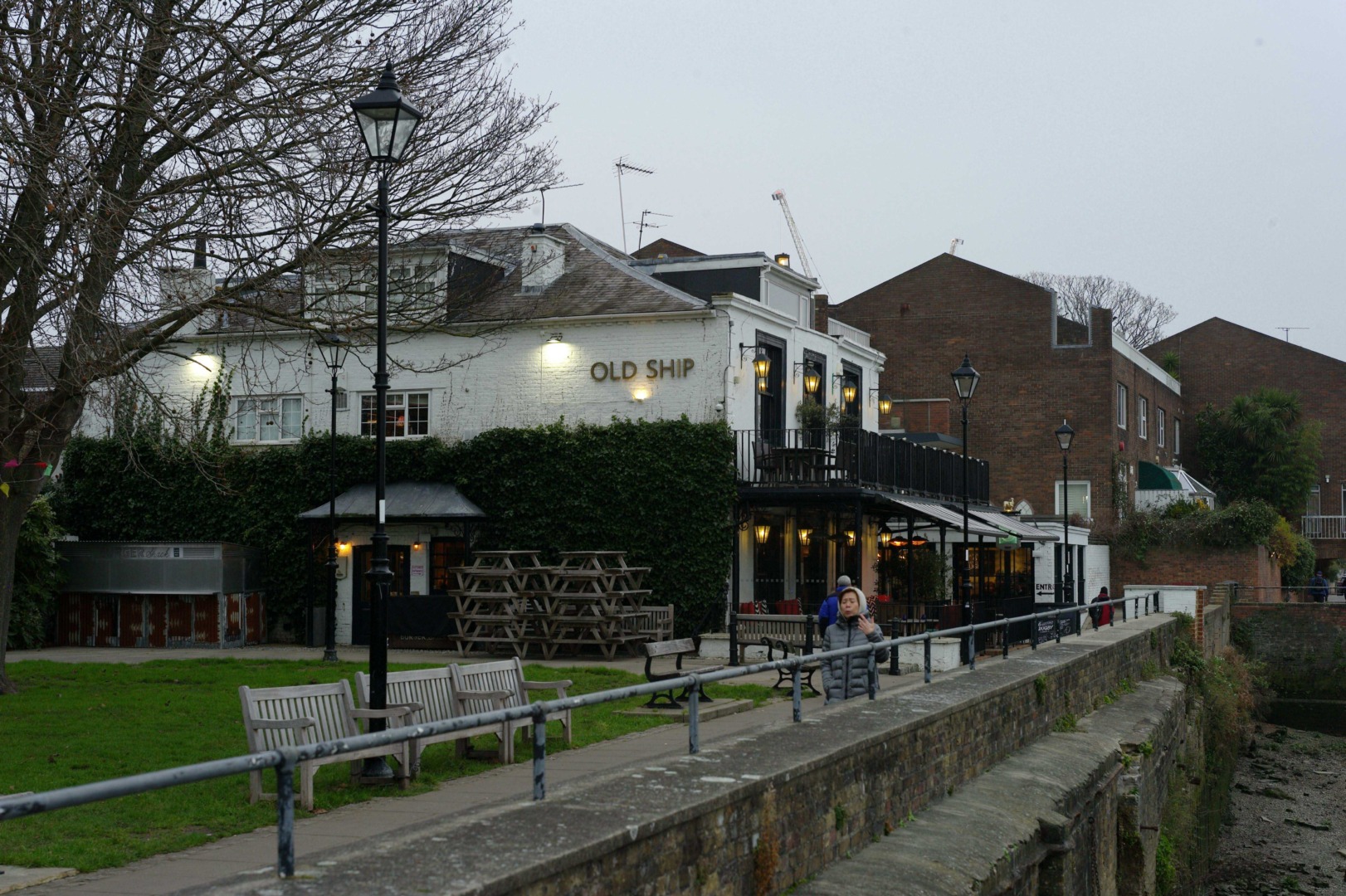

I took a few of the Old Ship pub, facing the river where the rowing eights were practising, to see if I could get its sign in sharp focus with the M11’s old-style 70% finder:
The thing about 60 megapixels squeezed into the same overall sensor area as, say, the 24MP of the M10, or the 12MP of Sony’s A7S full-frame cameras, is that with every pixel being so very small, you really do need extremely accurate focusing if elements of the image are not to “spill” across several groups of pixels, which would drop the resolution down to about 24 or maybe 12 MPs.
All these scores of megapixels sound great but the real resolution is always about a quarter of anything that’s claimed (unless you’re using a Sigma Foveon) because the final photo is always a blend of a red, a green, a blue, plus another green, adjacent pixels. So 60 MP blended to form a single photograph actually consists of about 15 million pixels overall — if you’re lucky. But 15 doesn’t sound as impressive as 60, huh?
That’s the situation for colour photos. But for B&W — as on the Leica monochrome cameras, which have no colour filter arrays — every pixel delivers a unit of B&W information, and so the 40MP resolution of, say, the Leica M10 Monochrom really is a full 40 megapixels. And with no averaged camera ‘guesswork’ of what colours or B&W values ought to be at individual pixel photosites, it can deliver — so the maker’s description says — up to ISO 100,000.
Unless the camera’s – or photographer’s – focus is accurate enough, with any fine-detail subject you’re shooting, you may as well just use a fewer-pixels camera and get exactly the same result.
Eye test first
Similarly, getting your eyes tested, and maybe buying new glasses for £250, may give you better images with your existing rangefinder than you’d get by splashing out the best part of £8,000 on that newer one! Aren’t I a spoilsport?
The same is true with camera-shake: if a high pixel-count camera isn’t held steady enough, your image can shake onto adjacent pixels, thus halving – at least – or quartering your resolution. So, instead of shooting at 1/50th sec with, say, a 50mm lens, you’d really need to shoot at about 1/150th or 1/200th sec.
Why autofocus, and why all these different cameras? To see how focusing with them compares with focusing the manual M11, and which would give the sharpest, best-focused image.
I took along – altogether – the previous model M10-P, a previous M9, a 42MP Sony A7RMkII, a 12MP Sony A7S, a Ricoh GXR with its 12MP Leica ‘M’ module, a 6MP Epson R-D1, a 5MP Leica Digilux-2 with its built-in Leica zoom lens, and – just for fun – a 2MP Fuji Finepix 40i pocket camera from the year 2000, which gives 4.3MP photos by ‘interpolation’, that is, by guessing what’s hidden between its interlocking diamond-shaped pixels – oh, and it also doubles as an .mp3 player!
Image stabilisation
My original thoughts were that if the viewfinder’s not good enough to focus incredibly accurately, then it’s pointless to buy an M11. The increased resolution of the new Visoflex 2 electronic finder for the M11 is meant to cope with this need to focus extremely accurately when using 60 megapixels. Plus it gives, at last, stabilisation of the electronic finder when it’s zoomed in.

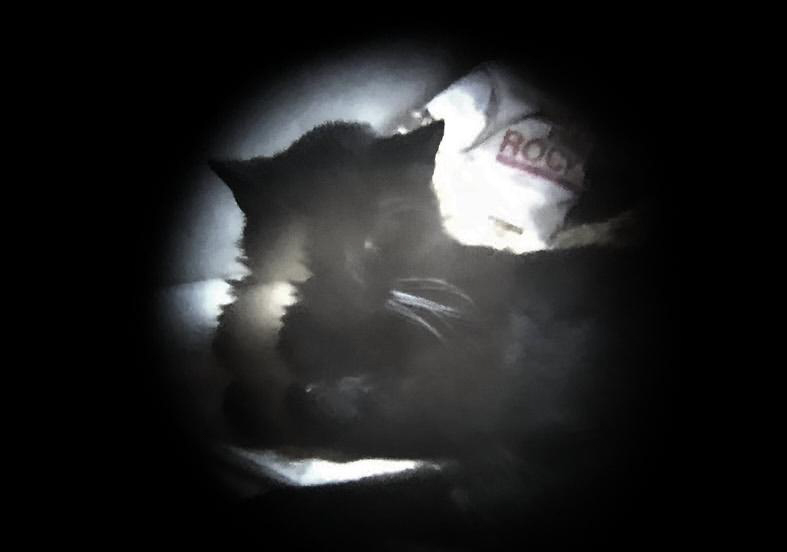

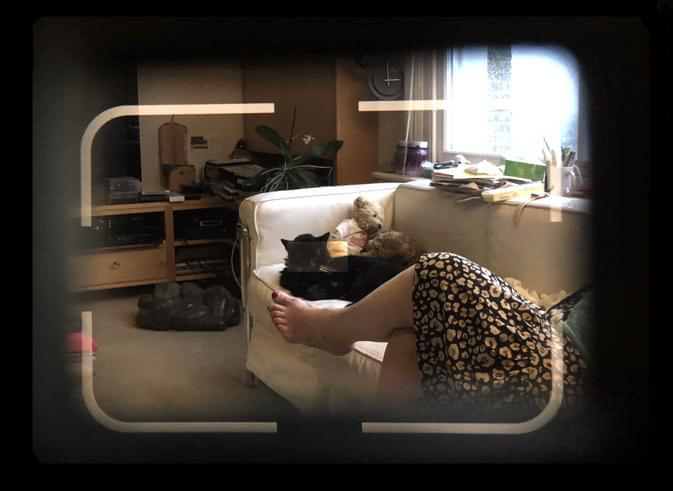

I thought, for comparison, I should use an original M3 (with its 90% life-size finder) but my stock of colour film being past its use-by date, I employed the same (kept chilled) roll of B&W Ilford XP2 at ISO 125. It should give really fine grain and should show how accurate the combination of viewfinder-plus-eyesight is.
After a couple of tests with the 80%-lifesize-finder M7 and the 90%-lifesize M3, I used the same roll of film (I wound it out of the camera, put it into at the next one, and shot black shots till I was back at the previous shutter count) for more test shots with (A) an old Diax rangefinder, and its famously sharp Schneider Xenar 50mm f/2.8 lens, (B) a small 1952 Barnack-style Leica IIIf which has a conveniently larger-than-lifesize 150%-magnification finder, using a 1953 50mm f/1.5 Leica Summarit lens, (C) a bit of auto-focus accuracy with a ‘Contax’ (Yashica) G2 with its superb interchangeable Zeiss 45mm lens. (I used the same lens on a Sony digital A7SMkII as well, to test that result against Sony’s own-brand brilliantly good 55mm E-mount lens.)
Now here’s the difference between focusing a 50mm lens on something – a cat, for example – eight feet away, as seen through the finder of the M10 or M11.

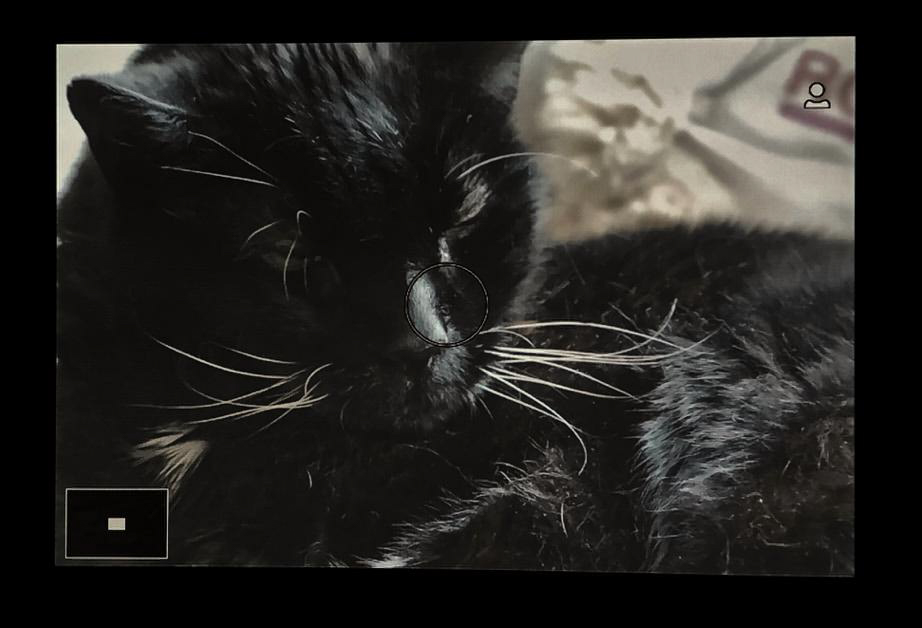

Let’s re-position that focusing rectangle over the cat’s face, without all the frame-line clutter…

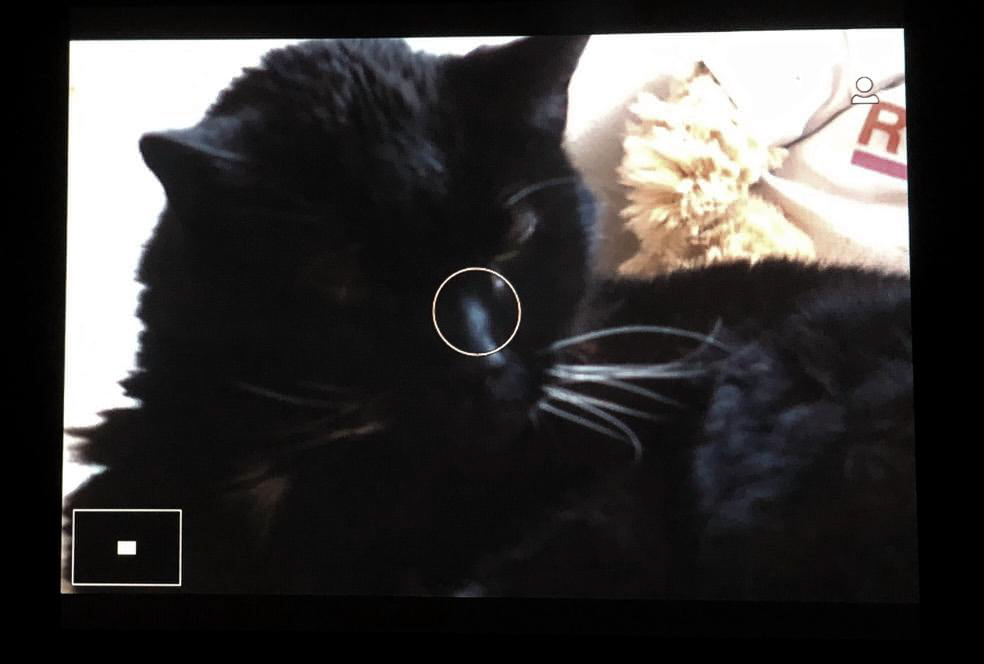

Which is what you get, of course, with the stabilised rear screen, and stabilised, electronically magnified Visoflex 2 finder!
Cat focus
So what’s the difference in results, then, between focusing on the cat with the normal M11 rangefinder, and using the magnified electronic finder? Here’s the result after I’d focused as accurately as possible, at eight feet, with that 50mm lens, using the traditional glass M11 rangefinder, and then viewing the image with the magnified Visoflex:
The trouble is, though, that if using a 90mm lens to make the cat look ‘closer’ and to fill more of the frame with it, the rangefinder is no more accurate with a 90mm lens than with a 50mm or any other lens. Actually, less accurate! (That’s due to the gearing ratio used within the lens to convert a large change of barrel length as you focus, into a small change of cam movement inside the camera to superimpose those rangefinder images.)
So, with less depth-of-field of a 90mm lens (at the same aperture as a 50mm), accurate focusing becomes much more crucial. But you cannot get increased accuracy with the traditional ‘M’ rangefinder. In fact, the opposite is true! That’s why the zoomable Visoflex 2 electronic viewfinder is so important.
Aperture choice
Let’s see what apertures Jono used for his demo shots in the article “The Leica M11 after seven months of testing”… f/6.8 (distant shot), well, everything should be, and is, in sharp focus. f/11 (close-ish shot, deep depth-of-field) everything in sharp focus. f/4.8 (medium close shot) tricky to get sharp, but he’s nailed it. f/4 (distant shot); f/3.4 (distant shot); f/5.6 (medium shot); f/16 (medium-ish shot); f/2.8 – ah, now we’re getting to where accuracy really counts.. 35mm lens, at five feet away? Next: f/2 35mm close-up, but only a central zone of those fish is in focus, so which bit was he aiming for? We don’t know. Then, f/11 (extreme distance), f/4.8 35mm (close-ish); f/4 35mm (food close-up – sharp!); f/5.6 35mm (close-up, sharp!); f/6.8 35mm (mid-close); f/4.8 75mm (distant); f/2.4 35mm (distant-ish); f/8 35mm (medium); f/2 35mm (close-up, sharp foreground, food); f/11 35mm (really distant); f/6.8 35mm (medium-distant)… and so forth.
Well, that’s a good selection of apertures and distances. But wait a minute: how did the camera know which apertures he used? f/2.4?, f/3.4? f/6.8? There is no linkage between an ‘M’ lens’ aperture and the camera… so maybe these are just the camera’s own guesses, or maybe Jono jotted them down. (Ed: All the later digital Ms show an estimated aperture in metadata). And for which photos did he use the Visoflex 2 electronic finder for the greatest accuracy? We don’t know, but he does say “With my M10 I almost never used the EVF, but with the M11 I’ve used it extensively”. Very wise. You need that extra accuracy with 60 megapixels.
There are a few of Jono’s specs that I just can’t reproduce: that B&W ’Best of Mates’ photo, for example. At that distance, focusing on a face, and with a 50mm at the specified f/5.6, I just can’t get the left man’s sleeve buttons to go that far out of focus. So was the aperture actually f/5.6, or something wider?
Note that none of Jono’s shutter speeds is slower than 1/125th – except ‘Scarlett’ (supposedly 1/60th sec with a 90mm lens, although he says in the Comments beneath it that it “…was actually taken with a 35 Summilux…”). So he’s used speeds that do give extra shake-less-ness to his photos by using throughout a faster shutter speed than the usual or common 1/focal-length. [Ed: My M11, which you used, was set to x4 focal length, I believe].
Back in the ship

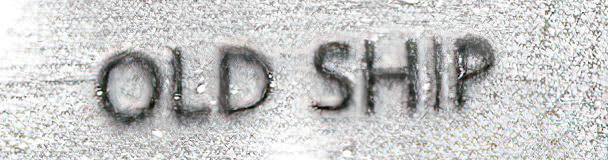

But, back to those comparative results of the Old Ship… with the old 18 megapixel M9:
And here’s a 100% crop of that lettering…
I went back a couple of days later with the 12MP Sony A7SMkII, and I put the great Zeiss 45mm f/2.8 on it, the one which is usually used on the Contax G2 autofocus film camera, and which didn’t focus too well on the 42MP A7RMkII.
Here’s what I got with the 45mm, and the camera set in APS-C (crop) mode, which gives only 5MP images, with an equivalent focal length of 67mm:
And here’s a crop from that…
How does that compare with what we saw right at the start, above? The similar crop from the 60MP M11…? It is certainly smaller, but is it any less sharp?
The results, though, of all these assorted tests, done over a few days, rather than over several months, convinced me that the manual glass viewfinder of the M11 actually IS good enough to achieve sharp pictures (with depth-of-field allowing for any misfocus) at, say, 20 feet and beyond. It’s also OK for fairly close focus photos, say 3 feet to 8 feet. But between 8 and 20 feet – especially if you use longer than 50mm lenses and wide apertures — you don’t get the accuracy that you really need unless you use the Visoflex 2. At least, I don’t.
Accurately-focused M11 photos don’t look, though — in some mysterious or magical way any better than photos taken with fewer-megapixel cameras. The 60 megapixels just let you enlarge a photo more before it becomes pixellated.
A crop too far
The supposed advantage of the 60 megapixels in the M11 is that you can selectively crop your photos, and still have many megapixels of resolution left, with the results not looking like poor quality, low-resolution shots. In other words, then, you could — theoretically — shoot everything with a 28mm lens, and afterwards just crop things so that some photos look as if they’ve been shot with a 75mm or a 90mm lens. Just like using the Leica Q or Q2, really.
But alas no; the background blur, or ‘bokeh’, which you’d get from, say, an f/2.8 28mm lens does NOT look like the far greater background blur you’d get from the same position but using an f/2.8 75mm or an f/2.8 90mm lens. The 28mm — cropped or not — pictures will always have the characteristics of the lens which was used to take them, that is, a 28mm lens.
So shooting with just one lens and cropping is fine. But only if you want all your photos to always look alike! Here’s what I mean…
The perspective here, whether taken with a 28mm or a 90mm lens — or anything else — is always the same (when photos are taken from the same position). But as you can see, the background separation is NOT. That’s the whole Q/Q2 problem. Cropped shots from a wide lens will always appear to have been taken with a 2x or 4x smaller aperture than was actually used, thus giving minimal bokeh.
However, that is a problem only if you do like to separate foreground and background. For all-in-focus landscape shots, shooting with a wide lens and then cropping wouldn’t affect the depth-of-field. But then, for a landscape you probably want the full width which a 28mm — or wider — lens gives, and so you wouldn’t want to crop anyway.)
That’s why we use different lenses, instead of sticking with just the one lens and then cropping what we want from 60 megapixels!
Conclusion
So what’s the result of all this fiddling about with different cameras, lenses and viewfinders?
Let’s itemise:
- The 60 megapixel M11 takes great photos, which can be cropped down to deliver small areas of the original 60MP photo, and still be sharp and have great resolution.
- A crop from a photo taken with a wide-angle 28mm lens, or just a normal 50mm lens, at its widest aperture will NOT show the same amount of foreground/background separation, or out-of-focus ‘bokeh’, as would a l-o-n-g-e-r- lens at the same aperture, from the same position, and so cropping from a wider picture may look disappointing.
- It may be very difficult to get really sharp photos at wide apertures with the M11’s normal glass rangefinder — using all 60MP — of anything that’s between about 5 or 8 feet to 20 feet (6 metres). It can be hit and miss. You’d really need to use the magnifying electronic Visoflex 2 finder. Beyond 20 ft (6m) the depth-of-field of lenses of 90mm or less will probably disguise any mis-focusing. Otherwise, you may as well be using a lower-megapixel camera, such as the M10 or M9.
- To avoid shaking — or any slight trembling — with the 60MP setting of the M11, thus reducing your photos’ resolution down to that of, say, the M10, you really need at least a 3x faster shutter speed than you’d normally use… or else rest the camera on something solid. When using a 3x faster shutter speed, you’d thus need a 3x higher ISO setting than normal. The M11 does, though, give great photos at high ISOs.
- The M11’s stabilised add-on Visoflex 2 (and stabilised rear screen display) is really important when using its magnified view to get sharpest focus onto those tiny 60 megapixels. For serious shooting (not just snapshots or landscapes) at wide-ish apertures — for which one buys f/2 or wider-aperture lenses — the add-on Visoflex 2 is really necessary. Otherwise, you may as well be using a 24 megapixel camera. Because any slight out-of-focus blur instantly knocks down the resolution to something much less than 60 megapixels.
- Battery life of the M11: really great!
- Huge (64GB) internal memory, as well as using an SD card. Excellent!
- Unprotected ‘waterproof’ bottom-sited cable socket? Daft and awkward. It reminds me of Apple’s worst design idea of the century — the Magic Mouse with the charging port on the bottom.
What I’d like to see
Leitz/Leica took a big jump forward with the old 1954 M3 because — besides the all-in-one viewfinder/rangefinder, the bayonet-mount lenses, and the parallax-sensitive viewfinder frame-lines – the camera had three separate viewfinder frame-lines which are automatically selected when you attach any of the 50mm, 90mm or 135mm lenses.
And from 1955, a frame-line selector lever was added, which meant that you could (and can) – manually choose which frame lines you want to see in the viewfinder.
Whoa! You can manually select what framing is seen in the viewfinder! That MUST mean that with some mechanical ingenuity — which the firm seems rather short of nowadays — Leica could give that lever (or the bayonet-activated auto-select system) the capability to insert the most relevant focusing magnification into the finder for whichever lens you’re using. Focusing with a 90mm lens: the centre of the finder would magnify the 90mm view for better focusing accuracy. Using a 28mm, just the central ‘focus-patch’ area could be magnified to make focusing even more accurate, while leaving the rest of the 28mm framing area unaltered.
This is really important when using 60 megapixels — which is why the Visoflex 2 provides a magnifiable and stabilised view — otherwise focusing on the ancient rangefinder system just isn’t accurate enough for many distances at which you’d shoot. (Note that the M11 instruction book says, on page 91, that the M11’s rangefinder is optimised — that is, at its most accurate — for shooting at two metres away [6.5 feet] and that at other distances, and especially with long lenses, it doesn’t necessarily show exactly what will be in your picture, and there will be some inaccuracy. This has consistently been the case with most rangefinders.)
Will I be buying an M11? No. I’m happy with my 24MP M10-P (the first really quiet digital M) and my 12MP Sony A7S, and other low-pixel-count cameras.
And that old 1952 Leica IIIf with its screw-fit Summarit lens is also really good. It’s also a quarter of a kilo lighter than an M11 in case you’re wondering.

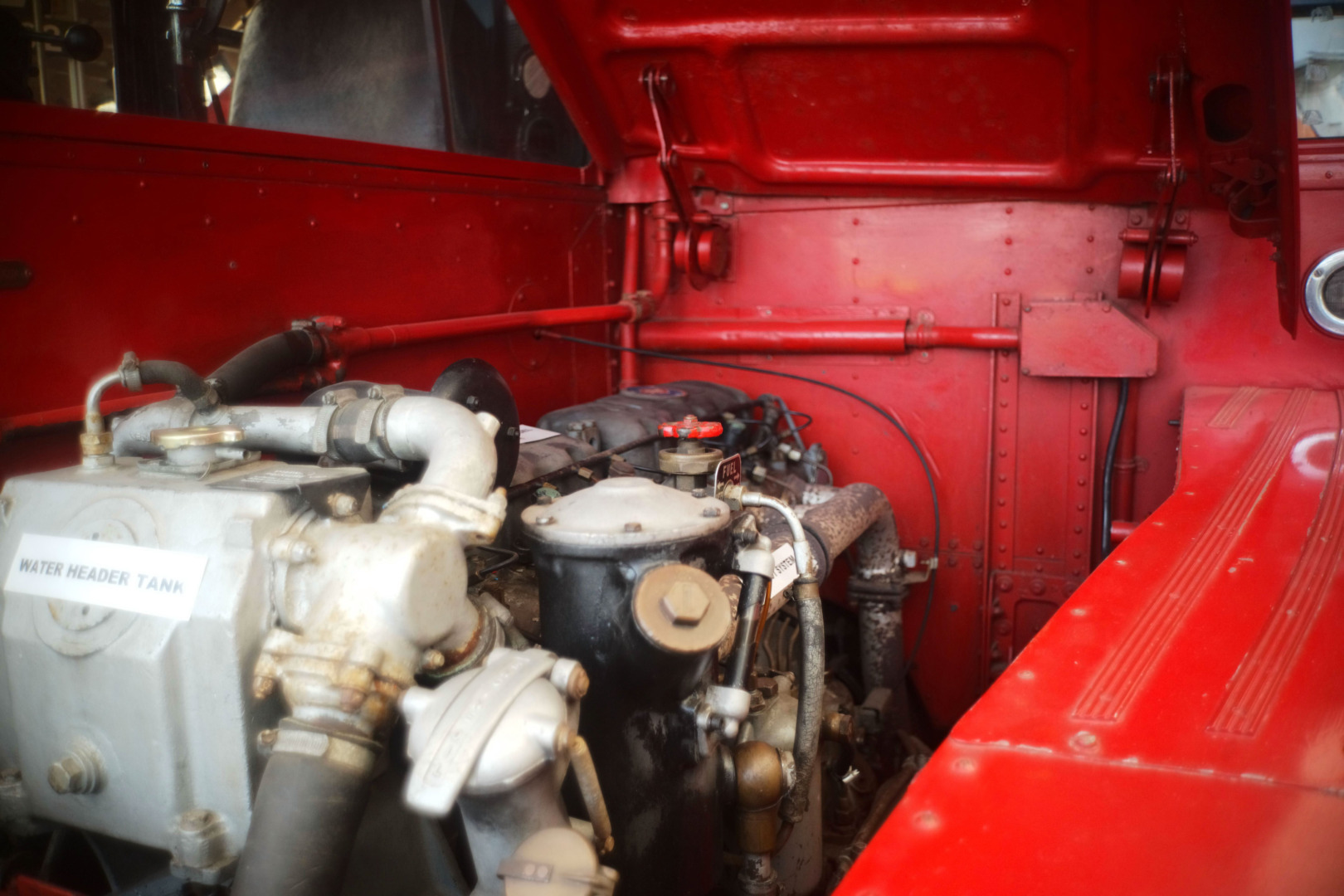

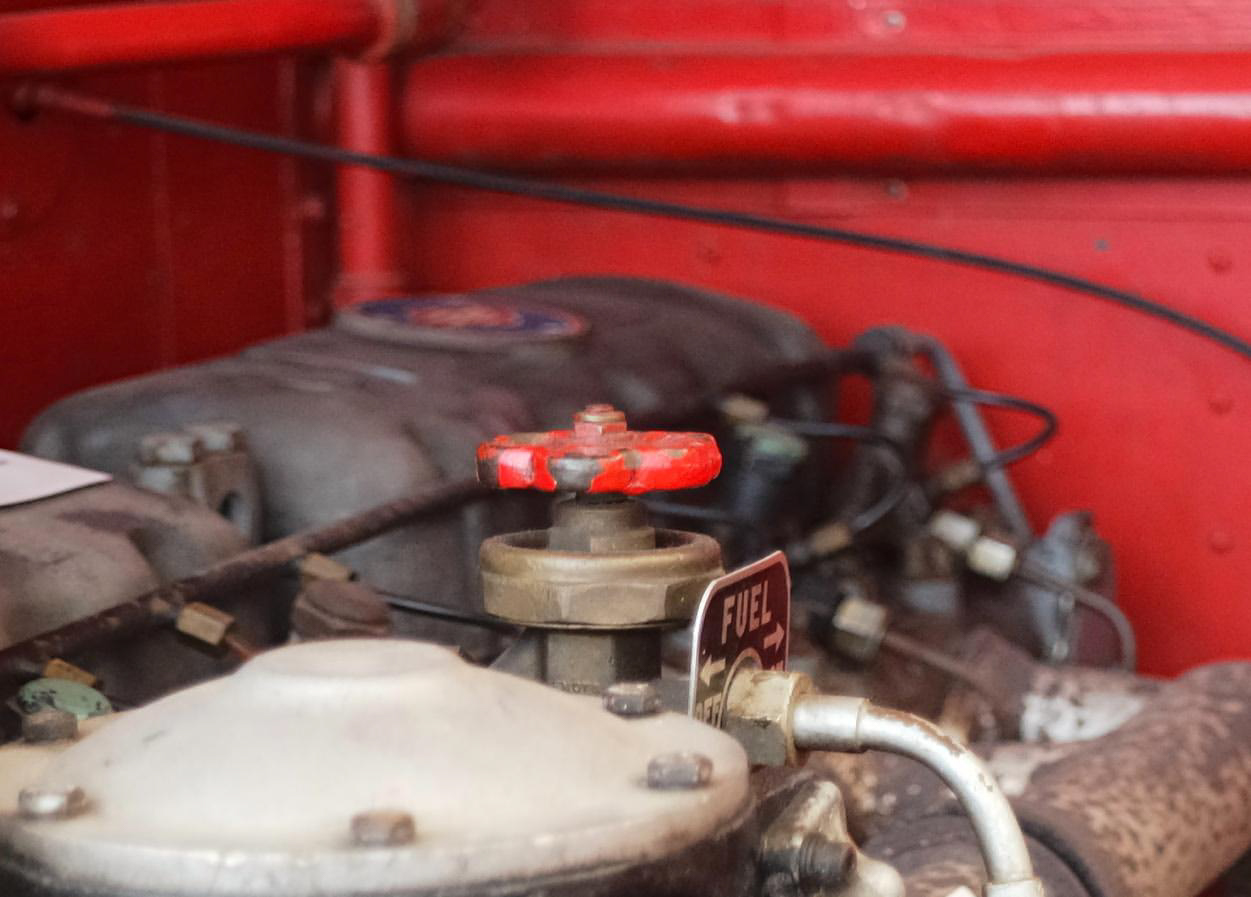

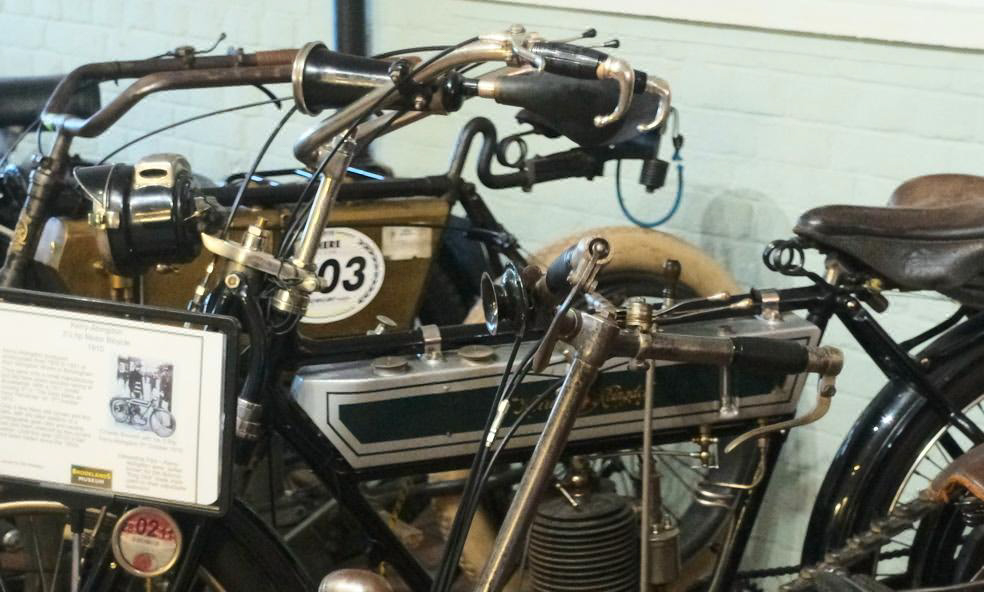

And now, just for fun, a selection of photos NOT shot with an M11, but with a variety of far-fewer-megapixel cameras. They go to show that you don’t need 60 megapixels to take appealing photos. (Most of these are presented here at just over 1 megapixel in size.)
So, finally: Who really needs 60 megapixels?
What do you think? Am I being over pernickety or is the M11 really the camera that floats on water and raises pixels from the dead? Are you happy with 24MP or do you lust after those 60 megapixels or even more?
