M Files (25): Epson R-D1 — the world’s first digital rangefinder camera

Subtititle: It was the world’s first rangefinder camera, two years ahead of the Leica M8. The Espon R-D1 celeberates its 20th birthday in 2024. Episode 25 of The M Files provides an appropriate tribute.

23

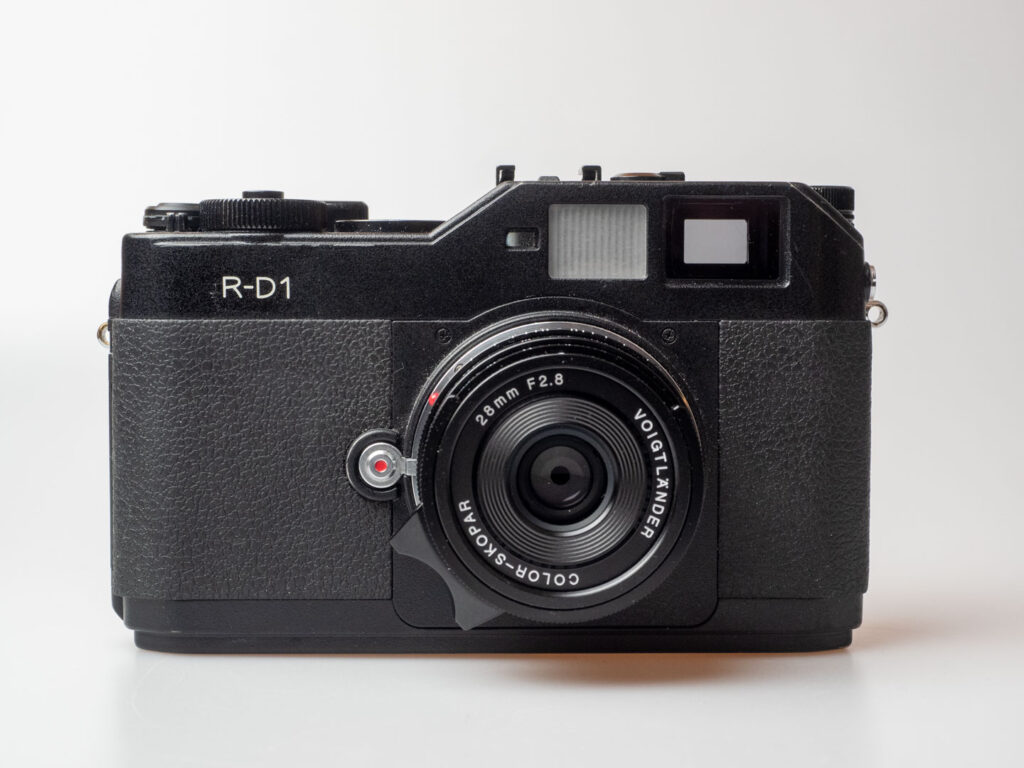

Product image shows Epson R-D1 digital rangefinder camera

This one deserves a place in every museum: The Epson R-D1 is definitely a ground-breaking camera. The world’s first digital rangefinder camera with M-Mount and an APS-C CCD sensor with 6.1 Megapixel resolution was released in 2004. And because of the mount, the Epson R-D1 also deserves an honorary place in The M Files. Thanks to David B. for making this special 20th anniversary tribute possible!

It was no less than a massive shock for Leica. Two underdogs in the camera industry come up with a scoop. Epson and Cosina are releasing the R-D1, while Leica is struggling to develop the M8. Jesko von Oeynhausen is said to have recently shared what Leica’s thoughts then were on the Epson camera: They were, back in 2004, more than surprised that a company best known for printers was able to launch such a camera. And Leica was seriously afraid of losing M customers.

When Epson launched the R-D1, Leica had the digital back for the M8/M9

It’s not that Leica had no competence in digital cameras, and Peter Karbe has repeatedly claimed that the narrative that Leica almost missed the (digital) train is simply wrong. In fact, Leica released the digital back for the R8/R9 in early 2004. At 10MP and a crop factor of 1.3, it was ahead of most other APS-C-based solutions at the time. It was also technically far more advanced than the Epson R-D1.

For two years, Epson had the market to itself

However, a digital M proved far more complicated because rangefinder optics and digital sensors have a difficult relationship. This is because the rear nodal point, especially of wide-angle lenses, is often very close to the plane of the sensor, which means that light rays reach the sensor at very steep angles. And yes, Leica knew that a digital M which would not work properly with their revered M lenses and that would be a disaster. As a result, Epson had a unique product until the Leica M8 came out in November 2006.

The rest (more or less) is history. Leica improved the M8 to become the M8.2, with better handling of the infrared spectrum, and finally hit it big in 2009 with the M9, the first full-frame digital rangefinder camera. The M9 was also the last model with a CCD sensor, and is still treasured by many active photographers. Leica continued at a steady pace with the Leica M (type 240 and its derivatives) in 2013, the M10 in 2017, and finally the current M11 family. Epson, on the other hand, was soon out of the running.

History: The Epson R-D1 remained a niche product

During its time, the Epson R-D1 also saw some improvements, but nothing really new in terms of sensor technology or size. The R-D1s, R-D1x and finally the D-D1xG models came with advanced tilting screens and card interfaces, but they remained 6.1MP CCD cameras. Production of the first model ended around 2009, the last items were sold to customers who won a kind of lottery.

Sales figures were never officially published (10,000 items have been rumoured), but I know from dealers that the camera was not a massive success. It lacked the Leica appeal for Leica M owners and was too expensive for newcomers. Not to mention the very limited wide-angle capabilities (and that’s what rangefinder photography is all about, isn’t it?) with the rangefinder and crop sensor combination.

Basically, the Epson R-D1 is a Voigtländer R2 with a sensor (and more)

Of course, Epson could not build this camera entirely on its own. In fact, the Epson R-D1 is in many respects a Cosina/Voigtländer camera. It uses the body of the Voigtländer R2 rangefinder camera and basically replaces the film with the sensor, the space for the cartridge with a battery, adds electronics, a tilting screen (very innovative in 2004!), and an SD card slot. Furthermore, it swaps the film counter/rewind for a new display and new controls. There is even the good old film advance lever to wind up the (by the way, quite noisy) shutter!

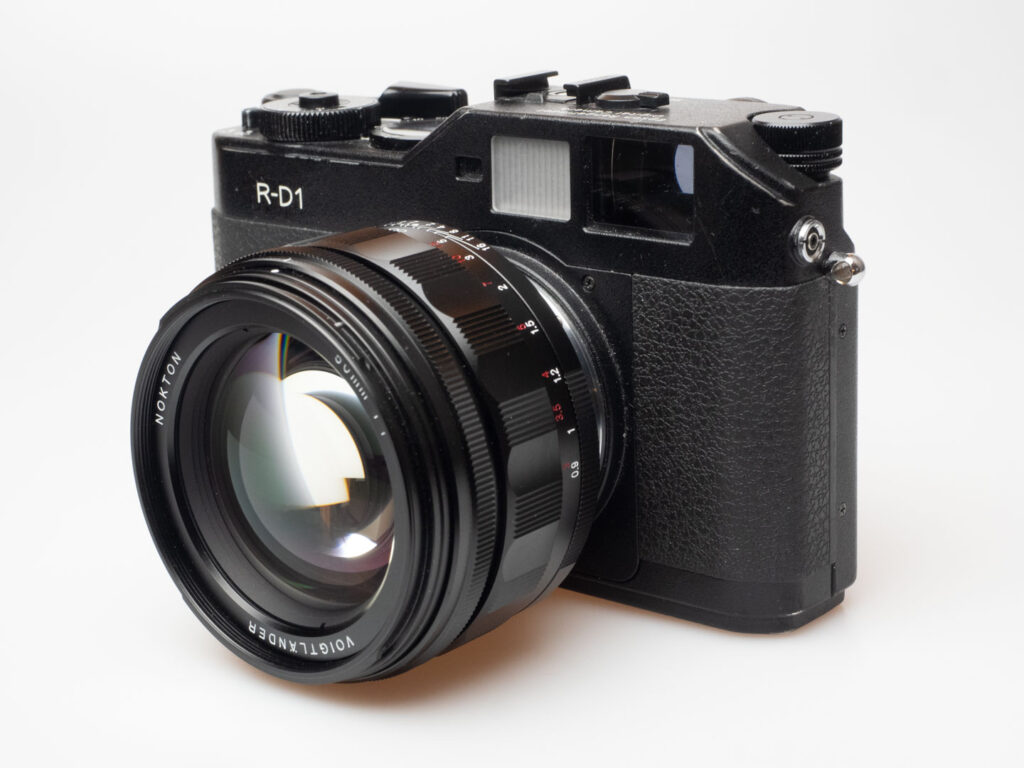

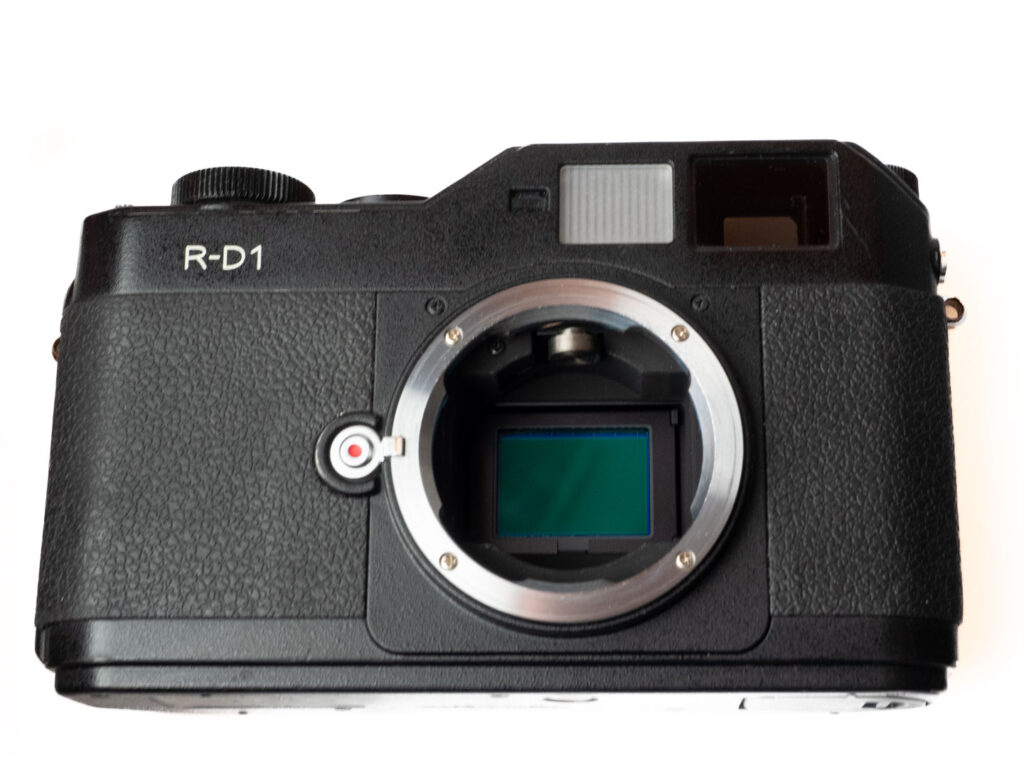

Product image shows Epson R-D1 digital rangefinder cameraProduct image shows Epson R-D1 digital rangefinder camera
Uses can fold the rear screen away. This way, you can get the pure rangefinder photography experience – as with a Leica -D model.

However, it took until 2014 for Epson to announce that the R-D1x was being discontinued. By then, Epson/Cosina had been selling essentially the same camera for over ten years, in an era of rapid technological progress.  The original Epson R-D1 had a retail price of around €3,000. In comparison: The Olympus E-1 Four Thirds DSLR cost about €2,000 in 2003 and the Canon EOS 5D full-frame DSLR was around €3,400 in 2005. And the price tag for the then new Leica M8 was €4,195 on the day of its release in November 2006. After a few years, however, R-D1 shelf-warmers were selling for considerably less. As of 2024, there is no longer any manufacturer support for the camera.

Handling of the Epson R-D1

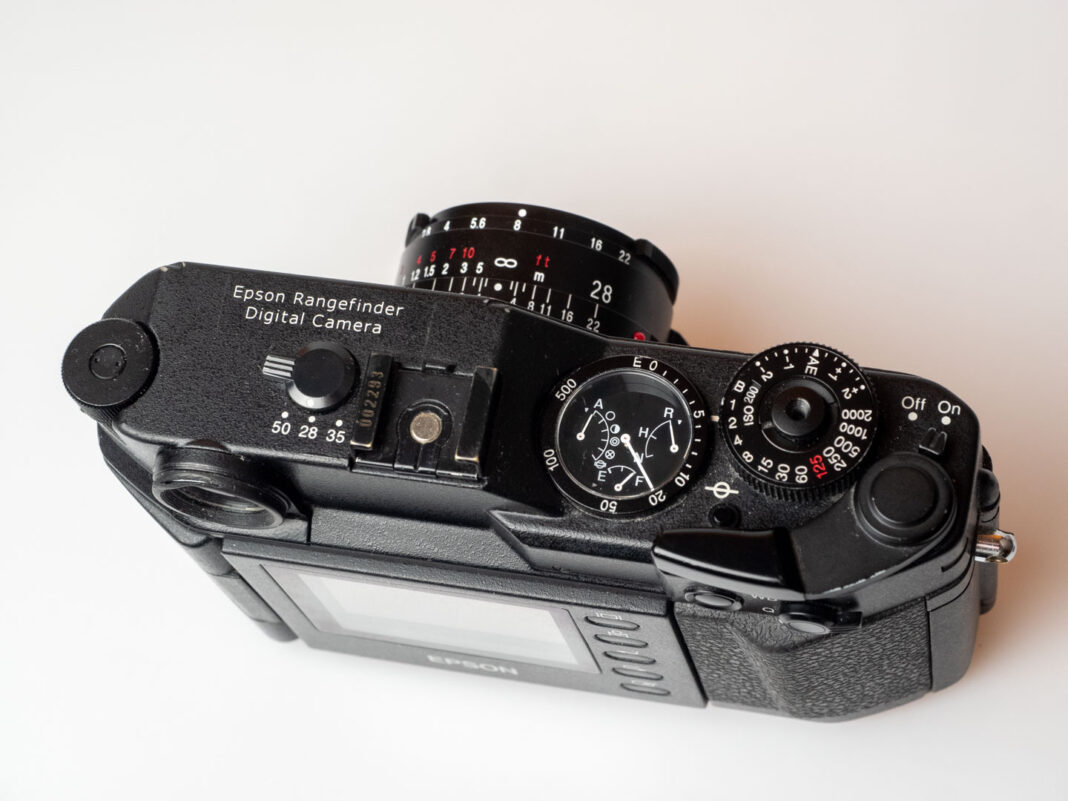

The whole camera screams ‘analogue’: Instead of a shoulder-mounted LCD or LED display, there is a series of analogue pointers for battery, white balance, remaining space on the (maximum 2GB) SD card and file format (raw, high, normal). It’s a bit like the cockpit of a VW Beetle in an electric car. Call it eclectic, call it epigonal, call it unique. But if you’re from the film era, you’ll hardly need the manual (free download from Epson here), everything’s pretty self-explanatory.

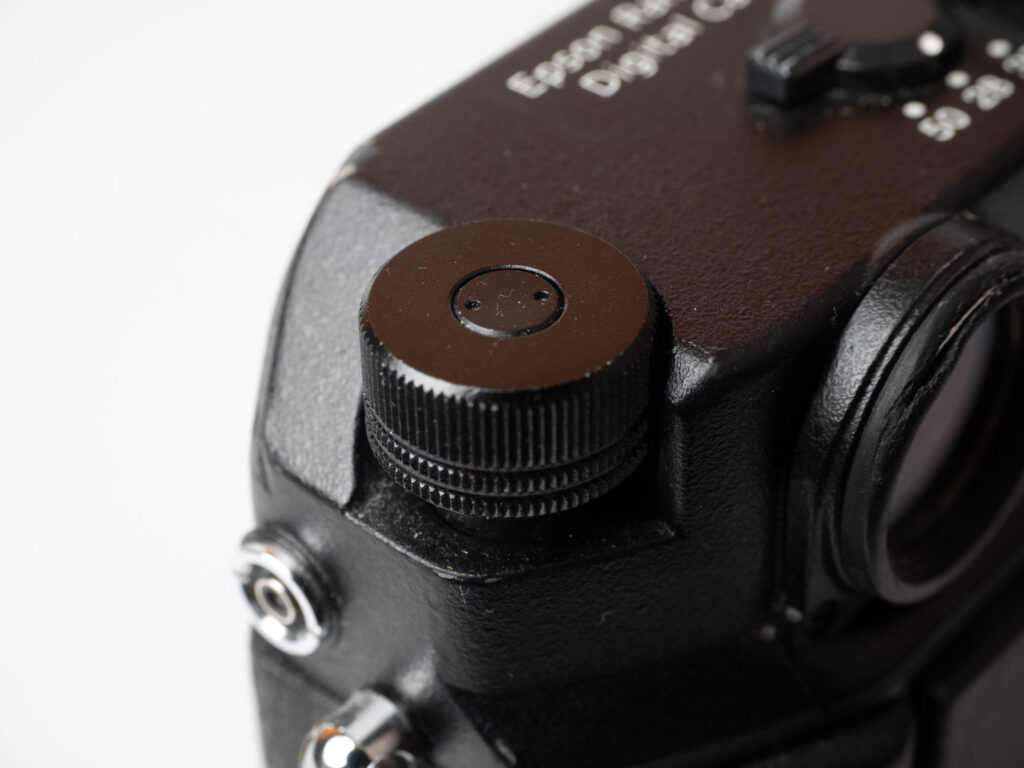

Oh, this wonderful “rewind knob” — so much love for the details!

And there are some remarkable details. The ‘rewind’ knob is a jog wheel, used to scroll through the menu, which is beautifully made and still looks attractive after 20 years. You can even lift it up to access a second function! It took Leica more than ten years to adopt this idea in the form of the M10’s ISO control. The frame line selector (there is no automatic function as in Leica’s M models) is well known from other Voigtländer cameras, and even a small lever on the back for setting white balance and image quality is a nice touch. All in all, I would say that it is still quite impressive today.

The Epson R-D1 is designed to be used in AE mode — you choose the aperture, and the camera chooses the right exposure speed, depending on the ISO value you have chosen. There is no Auto ISO. The shutter speed dial is familiar to anyone who prefers manual settings. In AE mode, this wheel is used to correct exposure. The camera uses LEDs in the viewfinder to indicate the shutter speed. These are clearly visible even in bright lighting conditions and range from ‘1’ (a full second) to 2000, with the presence of correction information, indicated by flashing time value LEDs.

Actually, you hardly need a manual for the Epson R-D1

All in all, the Epson R-D1 is an easy-to-use camera for anyone who has ever handled a rangefinder camera. The only thing to bear in mind is that ’28’ translates into the angle of view of a 42mm lens. If you want to use wider angles, such as 35mm or 28mm (63/75 degrees diagonal angle) full-frame equivalent, you need a 24/18mm full-frame lens and a 35/28 external viewfinder (read more about attachable viewfinders here). On the other hand, the ’35’ becomes a slightly longer ’50’ and the ’50’ becomes a ’75’ by cropping.

The 2-inch rear monitor deserves a special mention. It is certainly of limited use when it comes to judging your shots. The review function is incredibly slow by today’s standards. There is no live view, so the swivel mechanism will not give you all it theoretically could. You can, however, fold down the entire screen for a very traditional and clean look. In other words, you can turn this camera into a Leica-D-like model instantly and enjoy the most traditional photographic workflow imaginable. And remember, this camera was designed some twenty years ago!

Images from the Epson R-D1

I used the Epson R-D1 mainly with the Voigtländer Color-Skopar 28/2.8. I can’t really say why, but if felt just right to combine this camera with this new and minuscule lens. And in a way it combined Cosina with Cosina. Additionally, I attached the Leica APO-Summicron-M 50 to the R-D1. This was to rule out any possible negative effects of optics: The 50 APO is the best lens I could access for this review (well, it is world-class for sure), and I was sure that it would get the maximum out of the sensor. Other lenses I had on the Epson were the Laowa 14/4 (turning into a 21) and the new Voigtländer 50/1.5 (in effect 75mm).

I am showing here a few samples with the EXIF data as recorded. The exposure times seem a bit unconventional for me, and aperture is neither measured nor estimated by the Epson R-D1 (and I didn’t bother to write it up every time). I post processed the images moderately to get the best out of the RAW files without creating a fake impression.

Remember, the overall image quality is always a function of sensor and lens resolution. This is why a high-resolving lens does make sense even on a low-resolving sensor, and a high-resolving sensor makes the most even of a sub-standards lens. Jono Slack wrote on this at the end of his wonderful M11 review here on Macfilos, quoting from an excellent blog article by Roger Cicala. I am pretty convinced of this approach which shows that the “this is lens is overkill for my camera” is misleading.

Focusing the Epson R-D1 can be tricky

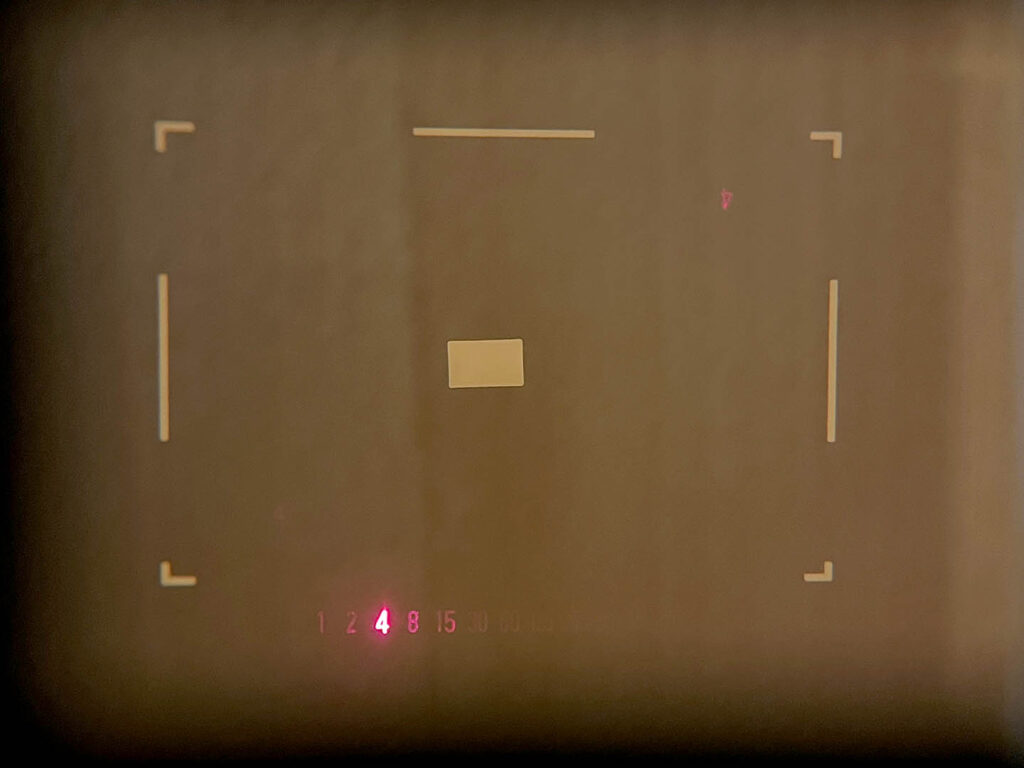

I was curious how my hit rate would be with sharp images. The rangefinder is stunning with its 1.0 magnification, the positive side of the incompatibility with any real wide-angle lenses. I managed to operate the camera with both eyes open, an interesting experience. The rangefinder patch of the Epson R-D1 is rather small, and the viewfinder isn’t the brightest I have ever seen. Furthermore, the effective base length of the rangefinder is only 37mm (Leica M10 with 0.72 finder: 50.6mm) So, I started with the coward’s choice and used the Voigtländer 28/2.8. The results were good. I moved on to the APO-Summicron 50 and had a good success rate wide open. But f/1.5 with the 50mm Voigtländer lens and at close focus distance becomes a something of a lottery.

Resolution: Back to the future with 6.1 MP

Six point one megapixels sounds ridiculous in 2024? Think twice. The images are 3008×2000 pixels. And your monitor? 1920 on the long side? 2560? If you don’t have a 4k display, the images out of the Epson R-D1 will still out resolve your screen. Sure, there are severe limitations when it comes to cropping, and prints in A3 will look grainy at close distance.  But if you are good at framing (maybe because you had enough training with slide films back then), you can do more with these 6.1 megapixels than you might think. And with good contrast in decently lit situations, the rendering of the Epson R-D1 is more than pleasing. Furthermore, the RAW files have just 9.7 MB!

The world in beautiful colours

Of course, everything is always a matter of taste, and post-processing can do many things to the colours of digital images. That said, the colours of the Epson R-D1 deserve a special mention: Thanks to the CCD sensor (I think), the images are rich in tone, well saturated, and the processed (in Lightroom) RAW files have a distinctive warm tone. If you shoot JPGs alongside, you will see a significant difference with the JPGs looking cooler, more tending to blue-green. At any rate, a beautiful outcome for such a veteran camera.

Monochrome mode

The Epson R-D1 is rather famous for its monochrome mode, and we know from the Leica M9 Monochrom that this is an area where CCD sensors can excel. If you want to obtain black-and-white pictures from the Epson R-D1, make sure that RAW+JPG is selected — the RAW files will turn up in colour on your computer, but only the JPG versions will be converted.

For these, however, you can select electronic “filters”. Such algorithms are available for yellow, orange, red, and green filter effects. I found the differences between yellow, orange, and red rather minimal. But this, of course, depends on the colours in the subject. And I have to say that I have always preferred making b/w versions in post-processing if I don’t go for a monochrome camera right away (in this case, always with colour filters — read here why they are indispensable).

High ISO? Better than you might expect

The ISO range of the Epson R-D1 is from 200 to 1600. I mainly used the camera at base ISO, expecting a fast dropping of image quality at higher ISO values. I was all the more surprised to see good results up to ISO 800 and, even at ISO 1600, the images are useable. By today’s standards, acceptable noise at ISO 1600 is certainly nothing to write home about, but keep in mind that this camera is 20 years old. And if you have RAW files, current AI based denoising technology will do the rest. Using superfast lenses is less of an option — you will incur precision issues of the rangefinder when using the occasional f/1.4 or f/1.2 lens (and the low-resolution back display is no big help for checking sharpness either).

Easier than with a Leica: Exposure is hassle-free

With its off-the shutter reading, the Epson R-D1 employs fairly conventional technology for exposure measurement. Well, it is basically the same as with all the newer Leica digital cameras up to the M10. Only the M11 uses the sensor itself to measure the light. However, there is absolutely nothing wrong with the Epson’s performance. The characteristics are centre-weighted and far more conventional than Leica’s exceptional (and, in the beginning, challenging to use) pattern, which is more of the spot type. Exposure compensation is accomplished by unlocking a small button under the shutter charge lever via the wheel around the shutter release button.

RAW or JPG? This is not the question with the Epson R-D1

I mainly worked with RAW files. The Epson R-D1 can store parallel images, and I made a few tests. The camera lets you set some presets for “films” with parameters for edge enhance, saturation, tint, and contrast. I did not play around with all this because I was more interested in the sensor’s ultimate performance. But for a 20-year-old camera, all this is pretty astonishing. The JPG versions of the files looked rather on the cool side to me, and highlights had a greater propensity to blowing. And with even the latest Lightroom version supporting this camera dinosaur, I see no real reason not to shoot RAW (or, in this case, ERW, which is the correct file format naming).

Sample image taken with Epson R-D1 digital rangefinder cameraSample image taken with Epson R-D1 digital rangefinder camera
JPG vs. RAW, identical treatment in Lightroom.

Conclusion

The decision to design, produce and sell the Epson R-D1 in the early 2000s was a bold move to be sure. Epson and Cosina came up with a camera that was in many ways revolutionary and in others quite conservative. For example, the 6.1MP CCD sensor was certainly not state of the art in these days. The rangefinder measuring base has the same limitations we can see in contemporary film-loading Voigtländer cameras. In a contemporary review for Luminous Landscapes, the well-known expert Sean Reid points out: “In most important respects, the R-D1 functions as the digital rangefinder that many of us have been waiting years for.” You can read Sean Reid’s review also as one of the free items on Reid’s website.

Today, the Epson R-D1 is of historical interest but also remains a beautiful tool for practical photography. It was a pioneering product that, in a way, put Leica to shame. But then again, the Wetzlar people reacted with a much more advanced camera with larger sensor and far better support for a considerable number of vintage Leica M lenses. So, buying an Epson R-D1 today, as nice the images from this camera may be, would be more a collector’s decision. There are some around, often at prices over the Leica M8, so any active photographer would rather go for a used M240 (Macfilos colleague Keith James proves what you can get from this camera to this day, this article is the first in a highly recommendable series).

In the end, the Epson R-D1 turned out to be a dead end

Sadly, the Epson/Cosina effort turned out to be a cul-de-sac, with Epson losing interest in the photography business and Voigtländer focusing on analogue cameras first and only on lenses now. But even from today’s perspective: Kudos to the brave people from more than 20 years ago. Or, to give Sean Reid in the aforementioned 2004 review the final word: “This is an exceptional little camera, one of the best and most enjoyable I have ever used.”

What about you? Have you ever owned the world’s first digital rangefinder camera? Or dreamt of owning it? Is the 6.1MP CCD sensor any good after 20 years of fast development in digital photo technology? Has the Epson R-D1 any value beyond the nostalgic or historic significance? Or do you simply want to know more about the camera or the images shown here? The comments section is yours!


The M Files would not be complete (if that is even a category) without this review of the Epson R-D1. But then this article would not have been possible without the support of long-time reader and author David B. He lent me his R-D1, a camera in wonderful condition and perfect working order, for an extended period of time. I would therefore like to dedicate this episode of the M Files to him personally. Thank you, David, for your help, your confidence, your generosity.
