The M Files (14): Voigtländer APO 35, 50 and 90 – the attack on Leica’s heart

25

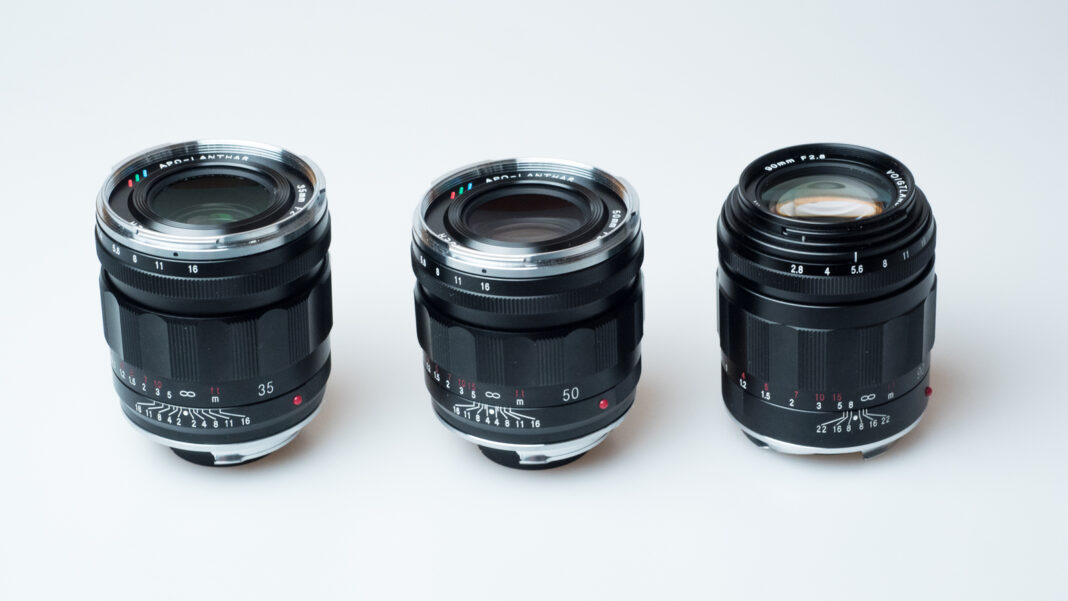

Voigtländer APO 35, 50 and 90
Voigtländer APO 35, 50 and 90 mm lenses

APO, that was once almost a synonym for Leica. And to this day, spectacular apochromatic lens designs come from Wetzlar. But at Voigtländer/ Cosina, they don’t rest on their laurels. Three new Voigtländer APO lenses were launched in the recent past. Let’s look at the APO-Lanthar 35/2, APO-Lanthar 50/2, and APO-Skopar 90/2.8. Are they contenders for lenses that cost at least six times as much?

Arguably, a healthy part of Leica’s survival was organised from Japan. From 1999 onwards, the revival of rangefinder photography was considerably triggered by Voigtländer. First with the Bessa L, a finder-less camera with Leica thread mount, and soon with M mount rangefinder cameras. Some of them were truly unique in their specifications (read more in The Files, part 2 about the wide-angle Bessa R4M and in part 6 about the very special model Bessa T).

The brand name Voigtländer was given to the manufacturer Cosina by the then Ringfoto Group who held the rights for this formerly prestigious German brand. And within Cosina, CEO Hirobumi Kobayashi was a driving force. According to various sources, he is a classic camera aficionado and thus a Leica/Zeiss fan, and without him there would most likely be no Voigtländer M mount lenses. Dozens of different models and variations were made over the past two decades, as Stephen Gandy on his far-more-than-a-store-website is showing.

When Leica stumbled, Voigtländer stood firm

Remember, Leica was in dire straits around and in the years after the turn of the millennium. High cost, low market share, lack of innovation and good products albeit at too high prices and at too late launch dates were one part of the misery. They had no good luck in going public; the involvement of Hermès was not exactly a marriage made in heaven, there were many changes within the management, and then, of all things, the digital revolution came along. In 2005, Leica was on the verge of insolvency.

In these years, Cosina helped a lot to ensure the rangefinder pipeline never really dried out. They launched the Bessa cameras and lens after lens with M Mount. They participated in manufacturing the revolutionary Epson R-D1 camera, the first digital rangefinder camera ever back in 2004. They built the Zeiss Ikon analogue rangefinder camera and the ZM lenses with it (read more about this camera in part 5 of our The M Files Series; more ZM lenses are covered in part 11 and in part 12 of the series). And they brought many lenses at an attractive price point on the market that opened the rangefinder option to many enthusiasts who would not have been able to afford the occasional Summilux.

No cheap pseudo-alternative, but a programme in its own right

In recent years, the Voigtländer lens designs have become notably more advanced. The adapted asphere technology greatly improved on mechanics and developed all in all into a mature line-up that is no longer a cheap stopgap solution but a programme in its own right. On the pinnacle are three lenses which intrude far into Leica’s territory: A few years after the ground-breaking APO-Summicron-M 50/2 by Leica, Voigtländer offered also an apochromatic 50/2. The Voigtländer APO 35/2 was even launched before its Leica pendant. The APO-Skopar 90/2.8 has no direct parallel in the Leica universe.

These three lenses will be covered in this review. I think it is good to have some historic background to understand their significance. As to technical background, I assume the readers know what an apochromatic lens is. In super-short, it is a lens with potentially superior sharpness and resolution by means of an extraordinary correction level; this article (by Zeiss!) gives you the basic facts.

Apochromatic designs and APO lenses are not the same

Of course, Leica would not be Leica if they did not have their own and narrower definition of apochromatic. Jono Slack wrote an as-ever excellent article on this here on Macfilos – highly recommend reading, also because of the important distinction between the term apochromatic and the designation APO lens. If you want to hear some details from Leica’s lens designer Peter Karbe himself, watch this video in German (from minute 13:25) or this webinar in English (more general, but also very instructive).

In the following reviews, I will look mainly at the lenses themselves. For the 35/2 and the 50/2, I did not have the chance to do side-by-side shots with the corresponding Leica APO lenses. The Voigtländer 90/2.8 has no direct equivalent in the current Leica line-up: The Elmarit-M 90/2.8 has long been discontinued; and the Summcron-90/2, albeit APO and ASPH just like the Skopar, is a full stop faster. So just read this as a report from intensive field use of the three Voigtländer lenses and not as a Voigtländer vs. Leica comparison.

It is, however, worth noticing that APO designs have become somewhat popular for shorter focal lengths. Apochromatic designs were a game-changer for long and super long telephoto lenses simply because the margin for improvement was considerable in 200, 30 or 400 mm designs. With the ever-improving sensors and their now merciless resolution, a need arose for APO designs even for shorter focal lengths. Here, conventional designs brought good and excellent imaging performance on film and on older sensors without such an effort.

Real-Life use of the Voigtländers on the M and SL models

The shooting was done with various M rangefinder cameras (see captions of sample images). Some more testing involved the SL (mainly Typ 601). All photos were taken in real-life, reportage-style situations. For scientific evaluations of lenses, please refer to competent sources such as Sean Reid, his page is worth every cent of the moderate subscription fee. His coverage of the 35/2 APO from both Leica and Voigtländer is truly impressive. I asked him if he plans to take 50/2 APO through its paces, and he replied that maybe at a later point in time. Some more good reviews are around online, for example here on Messsucherwelt (35, in German) or from Jack Takahashi (both 35 and 50, in English).


The Voigtländer APO-Lanthar 35mm F2

Yet another 35-millimetre lens? Does anyone in the world need that? Quite a few Leica M Mount users might have thought so when the Voigtländer 35 mm / 1:2.0 APO Lanthar aspherical VM was released in February 2021. Insofar, the lens is yet another iteration of an all-time classic with respect to both focal length and speed. Out came a fairly big lens for its tech specs, but demand was quite high from the beginning. To this day, you might have to wait some time to get your own copy. This has something to do with the good reputation of this lens of course.

Technical data, scope of delivery, price and availability

The APO-Lanthar 35 is not a small lens. It is 57mm long when attached to the camera and 71 overall (82mm with both caps). The maximum diameter is 56mm, and rather unusual for an M Mount lens, this one uses 49mm filters (other 35/2s and even some 35/1.4s get by with 39). The lens weighs in at 342g (as-in-my-bag, that is with both caps and original lens hood, the lens naked weighs 305g). The lens comes with both caps but no hood or pouch.

I use the excellent neoprene OP/Tech 253 fold-over pouch for this lens (I do not like my gear to be exposed to mechanical risks while in my bag), which fits perfectly without the lens hood and still very nicely with the hood attached in shooting position. The original hood LH-13 attaches with a beautiful bayonet, but its price of €109 is hefty, being exactly ten per cent of the price of the lens itself (€1,099). At least the LH-13 hood also fits the 50/2 APO VM and the Zeiss Distagon 35/1.4 ZM.

The Voigtländer 35 mm / 1:2.0 APO Lanthar comes in black only and is available new (if your dealer or his wholesaler or the manufacturer itself is not affected by supply chain problems). I hardly saw any on the second-hand market, so be prepared to invest €1,200 (as of June 2022) for the lens and its hood. I got mine with a three-year manufacturer’s warranty from Leica Store Konstanz

Optics and rendering

Lens design: The APO-Lanthar 35/2 has an ambitious lens design. It has two lenses on which both surfaces are aspherical. Of the eleven elements, another five are made from abnormal partial dispersion glass. Floating elements are supposed to improve sharpness at close distance. Voigtländer are claiming it is the best 35mm lens they made so far.

Colour drift and vignetting: Colour drift describes the phenomenon of colour cast toward the margins of your image. This is often induced by rays of light that reach the pixel wells on your sensor at a very steep angle. On my good old M (Typ 262) which is particularly prone to generating this error, I saw nothing to complain about. It never came to my mind to search for an appropriate Leica lens profile to activate in-camera or Lightroom correction for colour drift. Considerable general vignetting is visible wide open but this is pretty much gone by f/4.

Chromatic aberration: I tried my very best but I could hardly find any. Both in focussed and out-of-focus areas I did not discern colour and/or sharpness errors that could be related to chromatic aberration. This is true for all areas of the image right into the farthest corners. The APO designation seems to be justified!

Sharpness: The APO-Lanthar has very good resolution and exceeds the needs of a 24 MP sensor in all areas of your frame. The excellent rendering is based on outstanding overall and micro-contrast a precise plane of focus. Stopping down brings only a little further improvement. This lens will you the finest structures. I neither like the term when used for lenses nor the attitude behind it but there may be people who call the render “clinical”.

Bokeh and flare: The APO-Lanthar has a very interesting diaphragm design. The aperture blades are constructed in a way that they create a perfectly round shape at f/2.8, f/5.6, and f/16. Good news for all the bokeh lovers who prefer specular lights to be rendered in a rounded form. When it comes to flare, the lens copes with backlighting in an admirable way (for me, flares are more a fault than a criterion for “character”). With a very bright source of light in a very dark environment and with the lens hood in my bag, I managed to induce some flare.

My verdict, optics: Voigtländer do not promise too much. Their APO-Lanthar 35/2 is optically pretty much a perfect lens. It ticks all boxes you can think of, all culminating in incredible sharpness. Make sure your rangefinder is perfectly adjusted and you are working very carefully (as these both might be frequent reasons for missing ultimate sharpness).

Mechanics and handling

Overall appearance: As I already pointed out, the APO-Lanthar is a big and not exactly lightweight lens. It comes across as a solid piece of equipment, and its design alludes to classical Leica lenses with their distinctive “Berg-und-Tal-Riffelung” (“mountain and valley fluting” or scalloped focusing ring). The lens has a 49mm filter thread and a bayonet mount for the lens hood which is chromed. The latter is more than a question of taste because the bright ring might cause unwanted reflections.

Build quality: The build quality seems to be very good. There is no play in this all-glass-and-metal lens, the focusing and aperture rings are very smooth in operation. Be careful however when cleaning this lens. I had the impression that cleaning marks easily appear on the glass surfaces, so the coating might be a bit susceptible to damage.

Focusing: With a throw of just over 90 degrees, this 35/2 design can be precisely focused. The focus ring operates without being sticky or loose, just perfect. The minimal focusing distance is only 0.5 metres which can of course not be used with the rangefinder that is limited to 0.7 metres. But with an EVF or live view, it is a nice extension of your creative options. Image quality is no hindrance of any sort. for using close focus.

Viewfinder: The APO-Lanthar 35/2 is so big that it obstructs the most part of the lower right quadrant of your viewfinder. You can only guess what you will have in your picture. The blocked area is even bigger than with the Zeiss Distagon ZM 35/1.4. I would say you can get used to it, but it will take considerable time. If you are keen on very accurate framing, you will need an EVF or live view when you use this lens.

Heavy viewfinder blocking – the biggest downside of this lens. Left, with hood at close distance, right, without hood at infinity.

My verdict, handling: The APO-Lanthar 35/2 is a lens of great manufacturing quality and precision. It is a joy to use as long as you don’t mind considerable rangefinder obstruction.

Voigtländer APO-Lanthar 35/2: Alternatives

There are countless 35 millimetre M Mount lenses around, and many of them are very good. So it is almost impossible to give an overview of the 35 mm f/2 options. I would like to mention two other lenses worthwhile considering. The Voigtländer Ultron 35/2 is by far smaller, shows no viewfinder blockage and renders probably not as perfectly as the APO but beautifully to say the least (approved by Sean Reid). I also like the Zeiss 35/2 for its optical quality and handling (review planned for one of the next M Files episodes). Leica’s 35 Summicron ASPH. (not APO, Version I) always met my needs but it is optically clearly behind the APO-Lanthar.

The obvious competitor for the Voigtländer 35 APO is Leica’s new APO-Summicron 35 of course. I never used it so I can’t give an assessment. From the technical data however it is much smaller, has less finder obstruction, superb MTF performance… and an astronomic price tag. In fact, the Leica lens is seven times as expensive as the Voigtländer at €7700.

Voigtländer APO-Lanthar 35/2: the bottom line

Voigtländer’s APO-Lanthar 35 mm F 2.0 is an M Mount lens with excellent optical performance. It handles the trickiest situations and convinces with reliably superb performance. Its biggest disadvantage is the size which makes it less than handy and produces an annoying amount of finder blockage in rangefinder use.


The Voigtländer APO-Lanthar 50mm F2

Whether or not 50 mm is the real standard focal length for a 24×36 film or sensor format has been discussed for a long time now. Certainly, our viewing habits have changed in the direction of wide-angle. Nevertheless, I would like to make the case once again for the good old “nifty” 50. It is an incredibly versatile and pleasant focal length. So it’s hardly surprising that new 50s keep coming onto the market. Voigtländer has apparently put together pretty much all their knowledge for this and released the APO-Lanthar 50/2 in 2020.

Technical data, scope of delivery, price and availability

The Apo-Lanthar 50 is a lens of considerable dimensions. It has almost the same size as its 35-millimetre sibling. Mounted on an M Mount camera, it protrudes by about 55 millimetres. Overall (that is, with the part that extends into the camera body), it is 68 mm long and with both caps it measures 80 mm. The diameter is 56 mm which could mean that Voigtländer re-used the barrel design for the newer 35/2. The lens weighs in at 326 grams (measured, as-in-my-bag, ie with both caps and lens hood, the naked lens is 289 grams).

The APO-Lanthar 50/2 comes without a pouch (or any other accessory), but again the OP/Tech 253 is a great solution. The lens hood LH-13 has to be bought separately for €109 (see my remarks on this in the chapter about the 35/2). The filter size is 49 millimetres, the same as on the 35/2.

The APO 50/2 is available in black only, it costs €1,099 at the time of writing. It should not require too much patience to get one; my source Leica Store Konstanz has it usually in stock. Second-hand offers seem to be quite rare. Generally, Voigtländer lenses show more depreciation than their Leica counterparts, so with some luck, you could find a really affordable copy.

Optics and rendering

Lens design: The APO-Lanthar 50/2 is quite similar to the 35/2 reviewed above (as a matter of fact, the newer 50 is similar to its older sibling). It has an optical design with ten elements (35: eleven) two of which are double-sided aspherical lenses, two more have abnormal partial dispersion. The 50 has floating elements for improved quality at close distances. Voigtländer claim that this lens sets a new standard in their range.

Colour drift: See above to learn what is meant by this and why colour drift can be quite nasty. Generally, a mid-focal-length lens might not be as prone to this problem as a wide-angle. But apart from this, the APO 50/2 has absolutely no issues with colour drift on any camera I used it on. Well done by Voigtländer or rather by Cosina where this lens de facto comes from (also stated on the lens mount).

Chromatic aberration: As with all other Voigtländer lenses, the APO-Lanthar is uncoded. I used it without applying correction profiles (it be precise, I manually selected the profile for the 50 APO-Summicron in some instances on the SL in order to know afterwards which images were taken with which lens – I removed the profile later and marked the images via LensTagger), so we see the pure optical performance. Result after carefully analysing the DNG files: Almost no chromatic aberrations, neither in the focus plane nor in the unsharp areas. Maybe a minimal hint of magenta in light reflected by water but you have to search for it.

Sharpness: If you manage to nail the focus, this lens is perfect. Just as the APO-Lanthar 35/2, it has a very smooth, but at the same time steep transition between sharp and unsharp. I think this has to do with contrast falloff in the unsharp areas (Leica’s Peter Karbe once explained this with respect to the SL Summicron lenses that are supposed to have as much 3D pop as other 1.4 designs). Micro-contrast is high, and resolution is certainly high enough for cameras with far more than 24 megapixels.

Colmar honours the builder of the Statue of Liberty and the great son of the city, Frédéric-Auguste Bartholdi, on a roundabout in the industrial area. Note the vignetting and bokeh. Left: 1/3200 sec at f/2, ISO 100. Right: 1/250 sec at f/8, ISO 100. Voigtländer APO-Lanthar 50/2 on Leica SL (Typ 601)

Bokeh and flare: As mentioned, out-of-focus areas are rendered in a way that is appealing to me. However, bokeh is very much a matter of taste. I prefer it to be smooth which generally seems to be hard to achieve in high-contrast lenses. The APO-Lanthar 50/2 is a very good compromise in my eyes. At f/2.8 and f/5.6, the twelve aperture blades form a perfect circle. This gives you perfect specular lights in your unsharp background (or foreground). Flare can occur, and the accessory lens hood is not all too helpful (after all, if it works with the 35, it can’t precisely fit the 50’s design).

My verdict, optics: Voigtländer’s APO-Lanthar is an outstanding lens in its optical performance. The virtual absence of chromatic aberration, excellent resolution and plenty of micro-contrast create perfect sharpness.

Mechanics and handling

Overall appearance: The APO-Lanthar has pretty much the same look and feel as its younger 35/2 sibling. It looks classical, probably a bit baroque. I prefer the more utilitarian design of Leica and Zeiss lenses, but this is just a matter of taste. With its scalloped focusing ring, the APO-Lanthar has no focus tab (a bit to my dislike), just like the two other lenses in this review.

Build quality: Same as 35/2. Very good, solid, no plastic parts. This lens will outlive any digital camera it is used on. This is interesting as Leica claim that their lenses are so expensive because manual labour and the resulting build quality is expensive. The new Voigtländer lenses make me wonder if wages in Japan are so much lower? To me, the build quality seems not to be so awfully different between a high-end Voigtländer and a Leica lens. But maybe we have to use these lenses over decades to see the difference.

Focusing and close-up-distance: The 50/2 has a focus throw of under 90 degrees. This is not too generous, but the very good operation of the ring helps to get all in focus. The minimal distance is the usual 0.7 metres. At a close distance and wide open, the depth of field is very limited of course. You might be better off with an EVF camera such as a Leica SL model (via adapter), with an attachable EV or live view. Performance-wise, there is no reason to not use the minimal distance.

Excellent resolution (and 24 MP is enough for many a purpose!). Green Lizard (before scurrying off), Castel del Monte, Apulia, Italy, full-frame and crop. 1/400 sec, f/5.6, ISO 100. Voigtländer APO-Lanthar 50/2 on Leica SL.

Viewfinder: While the APO-Lanthar 35/2 blocks a substantial part of the rangefinder, the APO-Lanthar 50/2 is far better. This is due to its significantly narrower angle of view of course but maybe also because it is slightly smaller than its sibling. Without the hood, you have minimal finder blockage at infinity and a bit more at close focus. The (luckily vented) lens hood makes things worse but I would call it still tolerable.

Finder blockage is far lower with the 50/2 than with the 35/2 (left, with hood at a close-up distance; right, without hood at infinity). The lenses are about the same size but obviously the angle of view and thus the frame lines are much narrower.

My verdict, handling: The Voigtländer APO-Lanthar 50/2 is a very well manufactured and easy-to-use standard lens. Size-wise a bit on the bulky side, but it still handles well on a rangefinder camera.

Voigtländer APO-Lanthar 50/2: Alternatives

The obvious alternative to the APO-Lanthar 50/2 Leica’s similarly specced APO-Summicron 50/2. It is remarkably smaller, has a beautiful built-in lens hood and offers ultimate image quality. I worked with it on a number of occasions and was thrilled with the quality of this lens. If you want to settle for the one and only M Mount 50 and if you can afford it (€7990), the APO-Summicron is a wonderful choice for sure.

Among all the other 50s I have used so far and that are more within the range of a mortal photographer such as me, I want to mention the Zeiss Planar 50/2 VM which has great sharpness, although not the best bokeh you can think of. The Funleader 45/2, converted from a Contax G lens, got excellent reviews, for example from my colleague Claus Sassenberg on Messsucherwelt, and it sits nicely between a 50 and a 35.

Voigtländer APO-Lanthar 50/2: the bottom line

If you are looking for an outstanding 50 for M Mount, you cannot go wrong with the APO-Lanthar. It is optically superb and has good ergonomics. With modern cameras and the fast sharpness falloff of this lens, an f/2 maximum aperture might be sufficient for your creative ambitions so you might not have the need for a 50/1.4 at all.


The Voigtländer APO-Skopar 90/2.8

The third and youngest member of Voigtländer’s APO family is the APO-Skopar 90mm F2.8 which was released in October 2021. It covers a classical focal length which is very useful for portraiture, landscape and many other subjects. For many rangefinder users, the 90 is the only tele focal length they need. In this respect, the new APO-Skopar is the latest iteration of a continuous improvement process that has been going on for decades now.

Technical data, scope of delivery, price and availability

The APO-Skopar is remarkably small and lightweight. It is just 59 millimetres long when mounted on the camera (overall length of 67 mm and 84 mm with both caps). It is also tiny in respect of the 39 mm filter (a real Leica standard) it takes. The diameter is 53 mm. In your bag, this lens will not add much weight, it tips the scales at 288 grams with both caps and lens hood and at only 241 grams naked. This is remarkable.

The APO-Skopar comes with a very nice metal lens hood that attaches via a beautiful bayonet. It can be fixed in reverse direction of the transport. Oh, Voigtländer, I would really love you for putting the lens hood into the box right away! If you need a pouch, I can again recommend the OP/Tech 253.

The APO-Skopar 90/2 with the hood in working position and reversed for transport and storage.

The APO-Skopar 90/2.8 comes in silver and black and costs €729 new. It should be widely available from various sources. I got mine from Meister Camera Hamburg who also took care, in a very customer-friendly way, of my complaint that the lens had front focus caused by poor adjustment.

Optics and rendering

Lens design: Many 90-millimetre lenses in the past were four or five lens designs, some early designs even got by with only three lenses. The new Voigtländer in contrast uses seven lenses in seven groups. Five lenses are abnormal partial dispersion elements, aspheres and floating elements are not employed.

Colour drift: As you could expect from a newly designed 90, there are no colour cast effects occurring towards the margins of your image in digital use. Remember, colour drift will not occur on film because a film emulsion reacts to rays of light in a different way than a digital sensor.

Chromatic aberration: Couldn’t find anything noteworthy in different lighting situations and both in focused and out-of-focus areas. The performance is very even throughout the image with very good correction right into the corners. This is an APO lens for sure.

Sharpness: Now it becomes tricky. When I saw the first results of the APO-Skopar 90/2.8 I was very disappointed. No tack sharp eyes in portraits, no flowers popping out from the background. After some tests, I found out that my copy was not well adjusted. When I tried to get my son’s iris sharp, the focus seemed to lie on the rim of his glasses. With other models, I got more sharp eyebrows than eyes. A test on the SL showed that it was the lens (the camera’s rangefinder is fine, all other pictures are proving) with about three centimetres of front focus, which can be a lot. Long story short: This lens has excellent sharpness on the SL or in EVF/live view use. The rest will be remedied by an expert. If I get it back without the focusing issue resolved, I will update this review.

Bokeh and flare: Bokeh is pleasing but, depending on lighting conditions, a bit on the harsh side for my taste. Make sure you use f/2.8 or /f4 (or, hypothetically, f/22) for a circular aperture. This will give you nice bokeh balls. I always used the lens with its supplied (hallelujah!) metal hood and had no flare issues. The rather small front lens and the absence of the chrome plating of the hood bayonet will help here.

My verdict, optics: The APO-Skopar 90/2.8 may not be the best of all rangefinder telephoto lenses ever built, but it is a lens with remarkable performance for its size and weight. If your rangefinder-lens-system is well adjusted (or if you use any form of EVF right away), it will give you great results even at close distance. I only would like to know if I just had bad luck or if other uses were also affected.

Mechanics and handling

Overall appearance: Just like the other new Voigtländer APO lenses, the APO-Skopar 90/2.8 has quite the classical look. With its characteristic scalloped focusing ring, it fits nicely into the series. And I see a big similarity to Version II of Leitz’ Tele-Elmarit (1964-1974), not the worst you can say about a lens.

Build quality: The APO-Skopar 90/2.8 is all metal and glass. It feels light in your hand which is caused by the rather small size of the optical elements (one of the benefits of an f/2.8 design). Probably it’s just this lack of density that the 90/2.8 does not feel as great as the other two lenses. But there is no doubt that build quality is on par with these. Everything is as you would with it with a good operation of all elements.

Focusing and close-up performance: Focusing is a matter of concentration with this lens. The throw of the focus ring is used in a very practical way with a long distance between 0.9 metres, 1.0, 1.2 and 1.5 metres and getting steeper towards infinity. So you have the precision where you need it and keep fast operation if necessary. The minimal focusing distance is 0.9 metres, which is typical for a 90mm rangefinder lens but there were quite some moments when I had wished for better close-up abilities. The optics would support it, I think. But probably I am just spoilt by modern AF lenses with their often quite impressive close-up or even macro range.

Viewfinder: In its smallness, the lens never protrudes into your viewfinder when used without its hood. With the latter attached, you will have a little obstruction at close-up distance and next no none at infinity.

My verdict, handling: The APO-Skopar 90/2.8 is an easy-to-use lens with very good build quality. Focusing is a matter of routine, concentration and good eyesight (!).

Voigtländer APO-Skopar 90/2.8: Alternatives

As I pointed out, the variations of the M Mount 90 are legion. I discuss possible alternatives to the APO-Skopar with a clear focus on small size and affordable price. So, we will not only see 90/2.8 designs in this chapter (normally, I do not see so much sense in comparing lenses with strongly varying initial apertures).

When it comes to tiny size and low weight, Leica’s Tele-Elmarit 90/2.8 immediately comes to mind. This is a very small lens with a beautiful rendering, too – but a 1974 design can’t compete optically with the modern APO of course. A more contemporary alternative is the Leica Summarit 90 (2.5 or 2.4, the optical design is apparently the same), what a pity that the whole Summarit range was discontinued. A super-small solution with a rendering that equals the APO-Skopar is Leica’s Macro-Elmar-M 90/4 (it is said that this is an APO lens de facto, but I do not want to go into the details here).

Apart from these few lenses, there are many other 90s. The APO-Summicron 90 ASPH. has an excellent reputation. I can only praise the successor of the tiny Tele-Elmarit: The latest Elmarit-M 90/2.8 is not really small or light-weight, but optically and mechanically very good. Add the Zeiss 85/4 (discontinued), older Voigtländer tele lenses, Minolta’s M-Rokkor 90/4… and you have an amazing number of options.

Voigtländer APO-Skopar 90/2.8: the bottom line

If you are looking for a very small, optically and mechanically great 90-millimetre lens for your Leica M (or another mirrorless camera via adapter), go for the APO-Skopar. It costs new less than almost any other option used. Do check if your copy is well adjusted, and if everything is fine, you have a lens that might very well become your constant companion.


Voigtländer APO lenses: The final word

Maybe there are no more bad lenses for M Mount in the current line-up of Leica, Zeiss, and Voigtländer, at least as far as the newer designs are concerned. In my work for The M Files over the past three years, I came across a few lenses that I would not unreservedly recommend while most others were good or very good. In this spectrum, the new Voigtländer APO lenses stand out. They offer excellent optical and mechanical quality, period.

From the trio, I liked the 50/2 APO best. It is reasonably compact, has stunning sharpness, resolution and micro-contrast, and seems to be mechanically impeccable. The 35/2 APO is optically as good as its sibling, but it has the clear disadvantage of obstructing the viewfinder to a considerable degree. The 90/2.8 APO’s USP is its small size and low weight, making it a wonderful travel companion with great optical performance. However, check carefully if it is well adjusted to your rangefinder. At close distance, a front or back focus of two or three centimetres can ruin your image even at f/2.8.

All in all, Voigtländer add some wonderful, affordable options for M Mount users. We should be thankful for that – not only, but also because of Leica’s tendency to test the ultimate limits of the possible at all costs when designing new lenses. In this respect, Voigtländer is filling a gap left by the discontinuation of the Summarit series. The APO lenses with their excellent value for money are a remarkable contribution in this direction (especially since Voigtländer also has more compact lenses in its programme that are likewise very good), and hopefully not the last.


The M Files

The M-Files series reviews cameras and lenses that are equipped with the M bayonet without actually belonging to the Leica M system. Of this ongoing project, all parts so far are also available in English exclusively here on www.macfilos.com:

  1. Introduction to the M Files series
  2. Voigtländer Bessa R4M with Voigtländer 35/1.4 and 21/4
  3. Konica Hexar RF with Konica 50/2
  4. Rollei 35 RF with Sonnar 40/2.8
  5. Zeiss Ikon with ZM 25/2.8, 35/2.8 and 50/2
  6. Bessa T with Voigtländer 35/2.5 and 15/4.5
  7. Leica CL with Leica’s compact 40/2 and 90/4
  8. Minolta CLE 40/2, 2,8/28, 90/4 and several 21mm wide-angles
  9. Conclusion: Measuring the rangefinder world
  10. Encore: It does not always have to be Leica – my top lens recommendations
  11. Distagon revisited — the Zeiss ZM 18 and 35-millimetre lenses
  12. Zeiss again: Three more ZM lenses (2,8/21, 2,8/28, 85/4)
  13. Three lenses from Konica – M-Hexanon 28, 90, and the sensational M-Hexanon Dual 21-35
  14. Voigtländer APO: 35/2, 50/2, 90/2.8 – the attack on Leica’s heart (this article)

Die M Files auf Deutsch

Die M-Files sind eine Serie über Kameras und Objektive, die mit dem M-Bajonett ausgestattet sind, ohne direkt zum Leica-M-System zu gehören. Alle Teile der weiter anwachsenden Reihe sind neben der englischen Version auch in deutscher Sprache auf www.messsucherwelt.com erschienen:

  1. Einführung: Worum es in den M-Files geht
  2. Die Weitwinkel-Expertin: Voigtländer Bessa R4M mit Voigtländer Nokton II 35/1.4 und Color-Skopar 21/4
  3. Die moderne Messsucherkamera: Konica Hexar RF mit M-Hexanon 50/2
  4. Ein großer Name: Rollei 35 RF mit Rollei Sonnar 40/2.8
  5. Design trifft auf Tradition: Zeiss Ikon mit Carl Zeiss Biogon 25/2.8, Biogon 35/2.8 und Planar 50/2 ZM
  6. Der Messsucher-Sonderling: Voigtländer Bessa T mit Voigtländer Heliar 15/4.5 und Color-Skopar 35/2.
  7. Die andere Leica: Leica CL mit Summicron-C 40/2 und Elmar-C 90/4
  8. Das unterschätzte Innovationspaket: Minolta CLE mit Minolta M-Rokkor 2,8/28, 40/2 and 90/4
  9. Zusammenfassung: Die Vermessung der Messsucherwelt
  10. Zugabe! Gedanken zu Nicht-Leica-M-Objektiven und eine persönliche Top-5-Hitliste
  11. Zeiss Distagon ZM – Liebe auf den ersten und den zweiten Blick
  12. Zeiss ZM zum Dritten: Die Objektive 2,8/21, 2,8/28 und 4/85 für Leica-M-Bajonett
  13. Konica M-Hexanon 28, 90 und das sensationelle 21-35
  14. Voigtländer APO 35, 50, 90 – Stich in Leicas Herz? (this article in German)
