Infrared Photography: A beginner steps into a world where trees are white and all is not as it seems

11

Who isn’t fascinated by pictures of white or yellow trees, blue skies and filigree clouds? Who has never heard of the “Wood effect“? And how did I come up with the idea of trying infrared photography with a Nikon D700?

Pool reflections: Nikkor AF-S 24mm, f/1.8, 1/200s, f/8. ISO 200

Introduction

These are all questions I asked myself as I set out on the infrared train. It was the beginning, and I learned a great deal along the way. And I wouldn’t rule out that you might one day be captured by the same genre.

The human eye can detect electromagnetic waves between 400nm (violet) and 700nm (red) wavelengths as visible light. Film photography, I believe, covers a similar span, except in the case of special film emulsions, such as the legendary Kodak Aerochrome. You can still buy it “inexpensively” on eBay for €130 or more. And, even then, you’ll get a long-expired roll.

The area of infrared photography is a fascinating subject. Let’s start with the “Wood effect”. In 1919, the American physicist Robert Williams Wood described the phenomenon according to which green leaves appear white in infrared photography. The chlorophyll in the leaves is transparent in the near-infrared range. As a result, the water contained in the leaf reflects the infrared range and makes foliage appear white. At 630nm, the foliage becomes yellowish.

Filters

In principle, digital sensors can capture a much wider spectral range. However, to prevent unwanted diversions, our compassionate manufacturers have placed blocking filters in front of the sensors to „lock out“ these problematic wavelengths as much as possible. Thus we long-suffering photographers are spared untold Angst in post-processing.

This provides the opportunity for the use of various screw-on filters. They allow light only above a specific wavelength to pass through. That would be, for example, 650nm or 720nm. For the digital sensor, this means that only a small amount of light reaches it through its pre-cut filter. You photograph through a grey filter, so to speak. This takes you into the area of long exposure, and by this, I mean 30s upwards, depending on the ambient light.

Furthermore, conditions should be as calm as possible so that no motion blur occurs through wind movement — at least when photographing in the open air. And that’s not all. Hardly any camera will be able to find an acceptable focus point. This, in turn, means that you screw on the filter only after focusing or use lenses that can be operated manually. Done? No… The focal point for infrared light is different from that of the visible one. With older lenses, you can often find a red dot on the distance scale. This would then be the obvious saviour.

The old workhorse — a suitable case for conversion

Does that sound like fun? Such an idea springing into my mind surely indicates the need for psychological support. Indeed, My unalloyed respect goes expressly to the enthusiasts who do it this way

Converting

What other possibility is there? Yes, you guessed. Get rid of that blocking filter in front of the sensor. This I did, but did fettle the camera myself? Not brave enough for that…

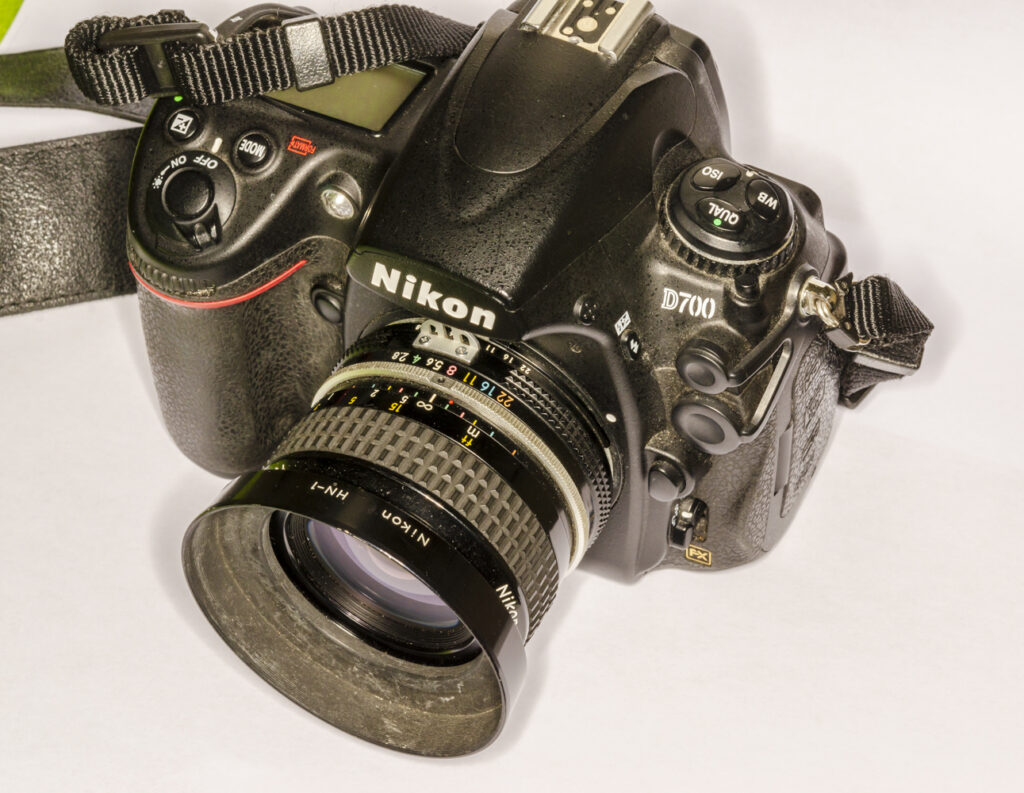

As it happened, my photo cupboard housed a Nikon D700 that had been unused for over two years. A sale would have added just a few pennies to the pocket money. So the D700 was an obvious and suitable case for treatment. This led me to the decision to „sacrifice“ this camera and have it rebuilt. The D700 has a 12MP full-frame sensor, and I am wholly familiar with the camera, which is clearly a good start.

As an infrared photographer Johnny-come-lately, I decided it was only common sense to use the best specialist I could find. So, after some deliberation, I chose a German specialist company, IReCams, to perform the vasectomy.

My Nikon D700 got a 630nm conversion, which means that a 630nm filter replaced the old blocking filter. That allows light between 630 to 1200 nm to pass through.

Each wavelength of a new filter initially brings different colour effects. But from around 830nm, only black-and-white images are created because no further colour information reaches the sensor.

What is the advantage of a conversion?

First, the need to use screw-on filters, with all the inconvenience they bring, is completely eliminated. The camera can be used “normally“. By this, I mean that you can shoot handheld with the usual settings.

The autofocus is readjusted during the conversion. It works in LiveView anyway.

The only disadvantage is that it’s likely a one-way conversion. It’s not easy to revert to your old camera — and, in any case, it wouldn’t be worth the hassle or cost. That’s why it’s a good plan to use an older camera that has served you well.

And now everything is fine and dandy? Nothing to worry about?

Logically, the answer is negative; otherwise, I would have nothing more to say on the subject.

So what did I learn next?

Hot-Spot

There are plenty of lenses with an infrared hot spot. In the centre of the image, an area is created in which more infrared light falls on the sensor than at the edge. If it were similar to a vignette, it could be removed if necessary. But no, it’s coloured. I’m not a Photoshop professional who can do that, let’s say, with umpteen masks and editing steps. So I needed a Plan B.

Sigma 35mm f/1.4 Art, hopeless hotspot

Intensive vignette of the lens? No problem, I’ll just stop down. You can do it, and you will find out that the hot spot can be neutralised much more effectively in this way. My cherished Sigma 35 f/1.4 Art is such a hot-spot machine.

An example from the Sigma 35mm f/1.4 Art at f/5.6. Left: Before Channel swap; right: after channel swap

Lenses with a low hot spot tendency:

As already mentioned, the Sigma 35 Art is not one of the most usable lenses. Up to f/2.8, it is halfway okay. Go wider, and the reddish area becomes uncorrectable. This wide-open aperture on the Sigma is definitely not the desired solution for landscape photography.

The Nikkor 24mm f/1.8 AF-S ED works much better in this regard. This led me to the idea of trying my manual Nikkors. Lo and behold, the Nikkor 35mm f/2 Ai seems to be entirely problem free. The legendary Nikkor 105mm f/2.5 AiS gave equally good results.

The 50mm will come at a later date. There has not been enough time so far.

In the meanwhile, sufficient time has passed to give me more confidence. I used a Nikkor 50mm f/1.4 pre-Ai and got good results with it. However, I don’t know how later Ai or AiS versions of this lens perform.

Nikkor 28mm f/2.8 Ai
Nikkor 28mm f/2.8 Ai

The Kolari company, which does conversions in the US, maintains a list of compatible lenses.

First steps in image editing

The pictures have been taken. Now it’s time for post-processing. But first, a bit of advice. Please always shoot RAW. You will soon see why…

After importing your new masterpieces into Lightroom, you will see nothing but red. Okay, it does come in certain gradations, but it’s red all the same. Fiddle with the white balance, by all means. Pipette on a bright spot. Hmmm…that won’t work either way.

One should do a channel swap of red and blue for a 630nm conversion. I did this in Photoshop, but the images looked totally messed up. The possible range for the white balance in Lightroom is many times too narrow.

The Adobe Lightroom view after image import
The Adobe Lightroom view after the image import

What now?

I download the Adobe DNG Profile Editor and made my own profile for the camera. This is one possible approach to solving the white-balance problem. I’m sure you can find others.

For this purpose, an appropriate photo is exported as DNG and called up in the editor.

Under “Color Matrices”, set the temperature of the white balance to -100. I have adjusted the “Tone Curve“ a tad as well. Then the new profile is exported. I gave it a descriptive name to make it easy to find. In Lightroom, it can be added to the Favourites.

The Adobe DNG-Profile EditorL Left, white balance -100; centre, graduation curve; right, name of the new profile

For Windows users, the following address applies when exporting:

C:Users%username%AppDataRoamingAdobeCameraRawCameraProfiles.

After restarting Lightroom, usable values can be set for the white balance. All you need to do is apply the profile you just created to the desired image.

Back in Lightroom, you can set more sensible values in the white balance

You can even create a preset for the import to Lightroom. If the profile is lost, LR makes the image red again (see above).

Next is the channel swap at 630nm. For this, I pass the image to Photoshop. This adds the possibility of recording recurring actions and assigning them to a function key. The swap runs in fractions of a second. For the red channel, red is set to 0, and blue to +100. For the blue channel, red is set to +100 and blue to 0.

The channel swap process in Photoshop. Note the hot spot of the 35mm Sigma

After saving, the image appears in other colours in Lightroom and can be further changed there and possibly made worse. This is left to individual taste.

Channel swap with different white balances

The white balance in LR determines the colours after the channel swap. Here you have the opportunity to experiment a little. For example, you can click with the pipette on a bright cloud or select the grass. Just experiment…

The Pfalz in January

February

I added the following paragraph and pictures on 27 February 2023. By this time, the merest breath of Spring can be felt in the Pfalz in Germany, where I live. The trees do not yet possess reflective leaves, but the first delicate flowers are appearing on early blooming almond trees.

Almond bloom in infrared

Comparison of the colour effect left infrared, right normal colours of a regular camera from the same almond grove.

Conversion to black and white using Silver Efex Pro 2

Conversion to black and white images can be done easily in Silver Efex Pro after the channel swap. I have noticed that many images appear subjectively to have a finer drawing. Maybe I’m just imagining it. In any case, darker image effects can be achieved that are probably not to everyone’s taste but, from my perspective, are well worth seeing.

Examples of conversion, Nikkor 35mm f/2 Ai with f/5.6

Same subject as above, a moment or two later

Nikkor 35mm f/2 Ai mit f/2, 1/2000s
Nikkor 35mm f/2 Ai mit f/2, 1/2000s

Below: Infrared photography with the Nikon D700, 630nm

Almond blossom in black and white at 630nm

What more can we learn?

The excuse of not taking pictures in full sunlight has thus become obsolete. Sorry…

The sun burns down on deciduous trees at midday and the subject is clearly defined?

View towards Haardtrand at Weisenheim am Berg
View towards the Haardtrand at Weisenheim am Berg

Go ahead, create enchanting, dreamy images, images that are unthinkable at this time of day with any other camera.

A winter that is not … Vineyards in Palatinate

The sun should be at your back to achieve the maximum result. There will be a difference in colours, depending on the angle of the sun. A lower angle results in a more orange hue. The higher the angle, the more yellowish the leaves will appear.

My tests with about 90° to 0° angle to the sun produced violent flares. The cause is probably the removed blocking filter, which would reduce the errors of lenses.

Logically, however, you can photograph almost anything with a converted camera.

I tried fireworks, among other things, only to find that they had no effect except for big flares. The cause was the moon in the upper right of the picture.

Night shot

Portraits get a completely different character. Our skin reflects quite well in the infrared range. Thus, after conversion to black and white, we can see fine, soft skin tones that are sure to please any model. On a lighthearted note, no need to go in for extensive makeup before sitting for the photographer — just suggest using an infrared camera and then converting the images to black and white!

Nikkor 105mm f/2.5 AiS
Nikkor 105mm f/2.5 AiS

The subject would find less pleasure in a frontal portrait up close if they looked into the camera while doing so. The eye area will be simply creepy.

After conversion in Silver Efex Pro
After conversion in Silver Efex Pro
Definitely better when it’s not directly into to the face (okay, maybe not 100% sharp)
Definitely better when it’s not directly into to the face (okay, maybe not 100% sharp)
Nikkor 35mm f/2 Ai, by the way behind mirrored sunglasses
Nikkor 35mm f/2 Ai, by the way behind mirrored sunglasses

The flower was red!

I first put this article together in January because it occurred to me much too late that I could like to have a camera converted.

My thanks go to Sven Lamprecht from IRRECams.de at this point for the super work and the quick remedy to the problem with the memory card slot, including sending it back and forth again.

I am eagerly awaiting spring and summer and a whole new range of subjects.

Nature reserve Erdekaut in January, each original and BW conversion

Cherry blossom at the salt works in Bad Dürkheim, tulips in the garden

Another lens I have tried meanwhile is the Sigma 20mm f/1.4 Art, Nikon F-mount. In contrast to the hopeless 35mm of the same company, I was pleasantly surprised.

Trees at Cabrillo National Monument, Nikkor AF-S 24mm f/1.8, 1/640s, f/8, ISO 200
Sigma 20mm f/1.4 Art on D700
