Lightroom Lens Blur: Useful tool or distracting gimmick?

Can a computational algorithm convert an image created at f/11 to one that convincingly resembles a photo shot at f/2?

26

Wouldn’t it be handy on occasion to achieve a narrow depth-of-field while shooting at f/16? The new Lightroom Lens Blur feature offers just that: fast-lens results from a slow-lens shot. So, is it a useful addition to the photographers’ compositional repertoire, or a fun but forgettable gimmick?

Algorithmic trickery

Adobe has introduced a further feature to the line-up of machine learning-enabled editing tools available in Lightroom. Last year we saw the introduction of a machine learning-enabled ‘AI-Denoise’ feature, which I discussed here. It does a superb job of eliminating noise from images generated when using high ISO to compensate for low light. In effect, it opens up creative photographic space beyond the exposure-triangle boundaries imposed by physics.

The new Lightroom Lens Blur feature aims to pull off a similar algorithmic conjuring trick.

Left: original, f/5.6. Right: after application of Lens Blur

In this case, the boundary being broken is the one imposed by the aperture, exposure and depth-of-field (DOF) triangle.

As novice photographers, we learned how aperture priority would drive the shutter speed/ISO combination required to achieve correct exposure. We also learned that adjusting aperture allows creative control over DoF; in particular, how wide open-apertures, yielding a shallow DoF, helps isolate the subject of interest from its background.

The pursuit of shallow DoF has driven the design of ‘fast lenses’. Lenses with maximum apertures below f/2.0 are generally held to be in this category, the most notable and expensive being the Leica Noctilux. At f/0.95, the 50mm Noctilux even breaks the f/1.0 barrier. It is the Roger Banister of photographic glass.

Left: original, f/8. Right: after application of Lens Blur

These lenses are prized for their spectacularly shallow DoF, both isolating their subject and delivering a dreamy bokeh. As such, they are popular with portrait photographers. However, they are tricky to use because focusing accurately becomes a challenge. This is why, although an M-Mount lens, photographers often mount the Noctilux on an SL2-body, employing its superb EVF and excellent focusing aids. Or, of course, they can attach the Visoflex EVF to the camera.

Wide open window might be closed

In some settings, though, shooting wide open is impractical. For example, when using zone focusing for street photography. Here, we need a zone of focus deep enough to discreetly capture a subject without necessarily using the viewfinder. Frequently, this requires setting an aperture of f/11, a focus point of several meters, and hoping for the best.

This approach typically works well, achieving a sharp image of the subject. A disadvantage is that the background is also in focus, cluttering up the photograph. Imagine being able to transform that image into one where a subject remains sharply focused but isolated from the background?

Left: f/9.5. Right: after application of Lens Blur

Another scenario which precludes use of wide-open apertures is bright illumination coupled with a maximum shutter speed of 1/4000s. Living in a sunny environment, I have encountered this situation numerous times with my Leica M240. My lovely 35mm f/1.4 lens has to be stopped way down to achieve correct exposure. The only optical solution is use of a neutral density filter

For both these scenarios — zone focusing and shutter speed limitations — a computational trick now offers a potential solution.

Lightroom Lens Blur

If you have used ‘portrait mode’ on an iPhone, you will be familiar with the approach. A machine learning-algorithm ‘segments’ the image, classifying its pixels into different categories. These might be subject, near-distance, middle-distance etc. The algorithm then selectively applies a blurring effect according to how the pixels have been classified. The result? A sharp subject, such as a human face, behind which is an attractive bokeh.

The Lightroom Lens Blur feature achieves a similar effect. The difference is, I can apply it retroactively and with much greater control.

Left: f/11. Right: after application of Lens Blur

Lightroom Lens Blur is available as an early release. I expect it will improve as its machine learning algorithm receives further training data, and users provide feedback. Nevertheless, I have been experimenting with it and exploring its strengths and limitations.

To illustrate its effect, I have included ‘before and after’ examples throughout the article. I have also included several ‘three-way’ comparisons. Here, I took shots of the same scene at f/2 and f/11+, and then applied Lens Blur to the image shot at f/11+. Did the computational blurring replicate the DoF of the f/2 image? Read on and find out.

Top: f/18. Lower left: f/2. Lower right: f/18 with application of Lens Blur. Note slight differences in perspective

Using Lightroom Lens Blur

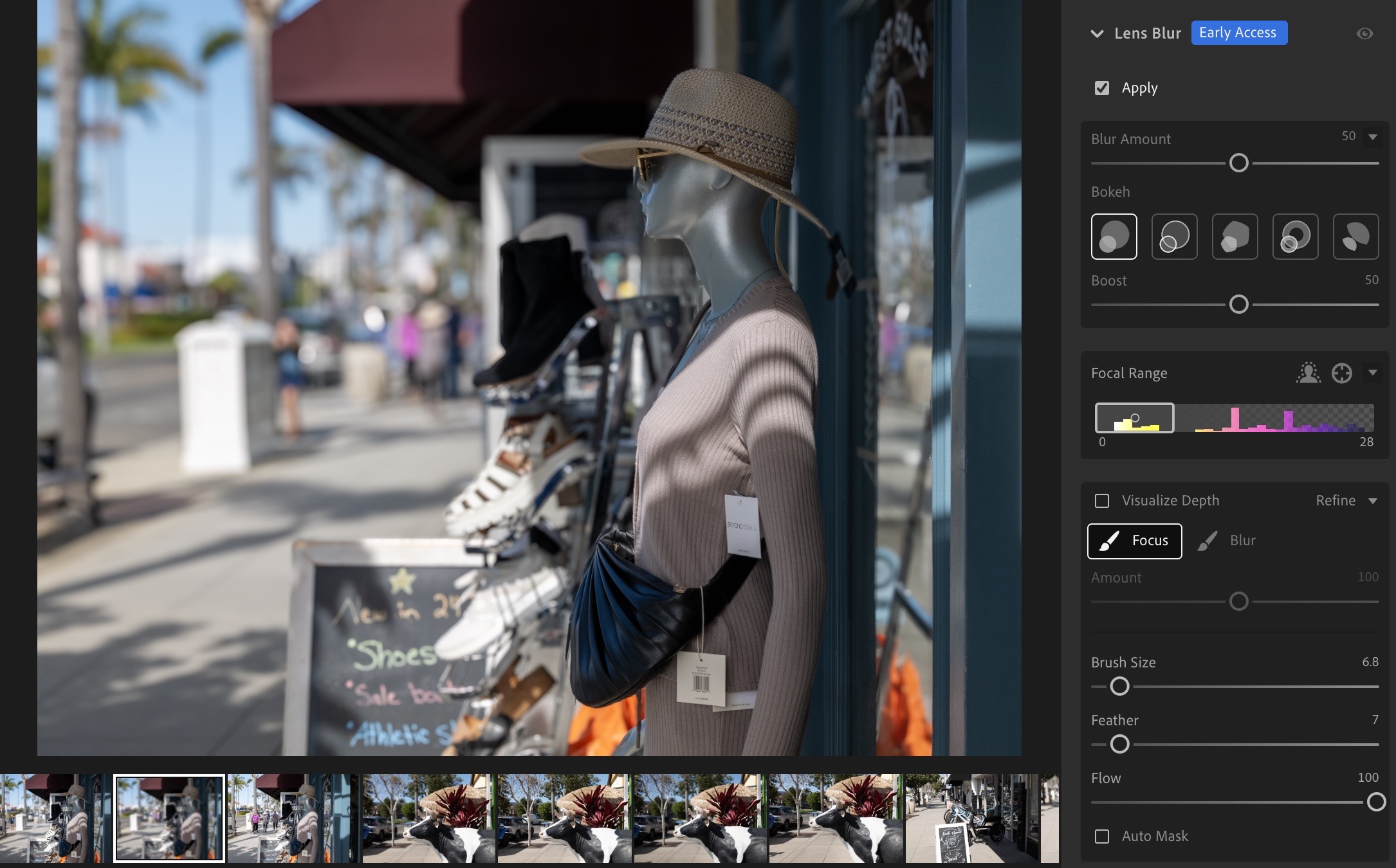

The Lightroom Lens Blur panel can be found in the editing menu, below the Denoise panel mentioned earlier. The screenshot below shows how the feature works.

When the ‘apply’ box is ticked, the system calculates and presents a blurred version of the image. It selects a default bokeh type and a 50%-blur level. Both can be adjusted; via a slider for blur-level and a set of options for bokeh. You can view a very helpful graphic illustrating the focal range. This can be moved, expanded, or reduced, to optimize the effect.

The system also provides an option to manually adjust which features are blurred/focused by painting in with a brush. The brush size and properties can also be adjusted.

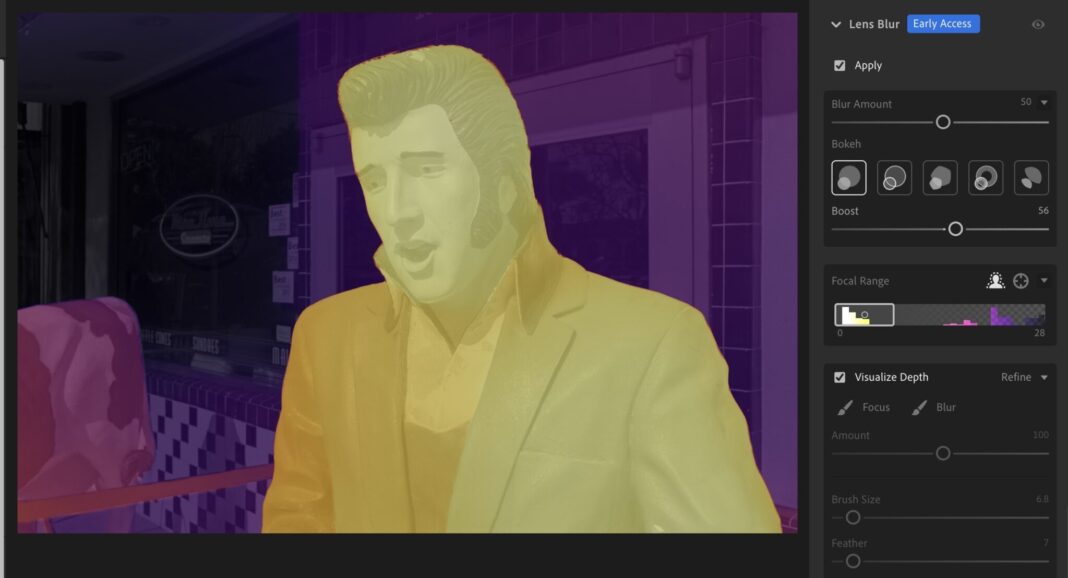

If a user clicks the Visualize Depth box, as illustrated below, a colour-coded-by-depth version of the image is presented. You can see how the algorithm has approached ‘segmentation’ of those pixels according to distance from the camera. This feature is extremely helpful for making minor adjustments to the blur effect. For example, if the algorithm blurs an object which should be in focus, this is easily corrected with the brush.

With a little practice, I found the system easy to use. As with most tools of this type, a light touch seemed to produce the best effects. I often dialled back the effect to 30% or less.

Marks out of ten for Lightroom Lens Blur

I had fun experimenting with it. The feature was most successful when the subject of the photograph was easily identified and square on to the camera. In most cases, this was a human form, but the system also handled images where the subject was a sign or a fibre-glass cow. In some cases, I needed to intervene manually, either blurring or unblurring a detail in the subject.

Top: f/11. Lower left and right: f/1.4 and f/11 with Lens Blur. Which is which? Note slight difference in perspective

Overall, as an early release of a new creative tool, I would rate Lightroom Lens Blur 7/10.

But, you might be asking yourself why anyone would go to the trouble of using this feature on their photograph?

I would be surprised if a professional photographer, for example, a portrait or wedding photographer, would use Lightroom Lens Blur. I assume they own fast lenses and would not tolerate any computationally-generated artefacts in their images. Perhaps someone creating an advertisement, or a poster for display on noticeboards, might find it of use. These do not carry the weight of personal images viewed for many years, or even across generations.

When I asked myself that question, it led me to consider a broader point. What is my objective in taking photographs, and how would applying this effect help me achieve that objective?

Useful tool or distracting gimmick?

I am not a professional photographer. I suppose I am an enthusiast. Or a hobbyist. My local community, who see my photographs on display occasionally, refer to me as a visual artist! How fancy!

So, my thought is that anyone who aspires to create art through photography would find this a useful additional creative tool. Isn’t it akin to deepening shadows, adjusting colour saturation, and removing unwanted noise? If it can help someone produce images that come closer to their creative vision, surely that’s a good thing.

Left: f/16. Right: with application of Lens Blur

To answer the question posed in the title of this article, I would vote for ‘useful tool’ rather than ‘distracting gimmick’.

If you have used Lightroom Lens Blur, I would be very interested to hear your perspective. Please don’t hesitate to comment below. And, I wonder what machine-learning-enabled image enhancements might be coming our way next?
